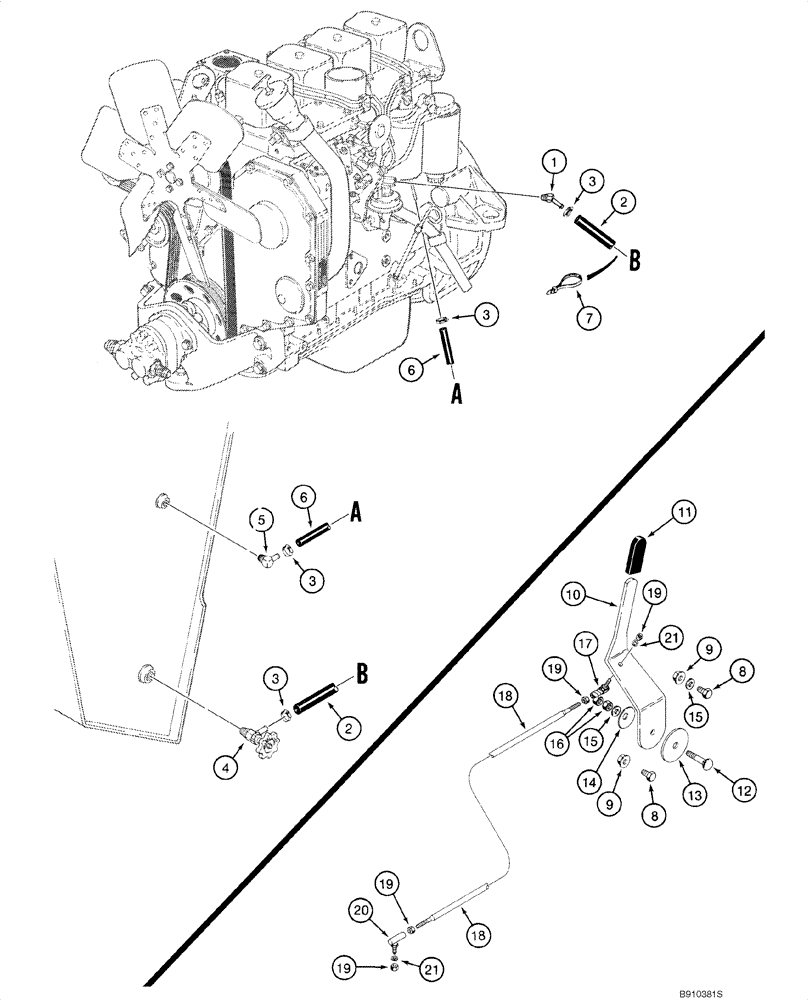

Запчасти Case IH 1845C (03-01) - FUEL LINES - CONTROLS, THROTTLE, 4-390 ENGINE (03) - FUEL SYSTEM

1

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

2

D124109

FUEL HOSE

1200 mm (47-1/4 in); Cut from A21562X

1шт.

3

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

4

A154051

COCK, DRAIN

1шт.

5

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

6

D127925

HOSE,6.35 mm ID x 1420.00 mm, SAE 30R6 or SAE 30R7

Cut from A21561X

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.

10

H435848

HANDLE

1шт.

11

D126613

HANDLE

1шт.

12

111-381

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G2

1шт.

13

1342374C1

DISC

Friction; Replaces D139323

1шт.

14

R14771

WASHER

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1-2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

H169920

BALL JOINT

1/4 NF

1шт.

18

H437018

ROD

Replaces D126111

1шт.

19

425-114

NUT,1/4"-28, G5

4шт.

20

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 NF

1шт.

21

492-11025

LOCK WASHER,1/4"

2шт.
