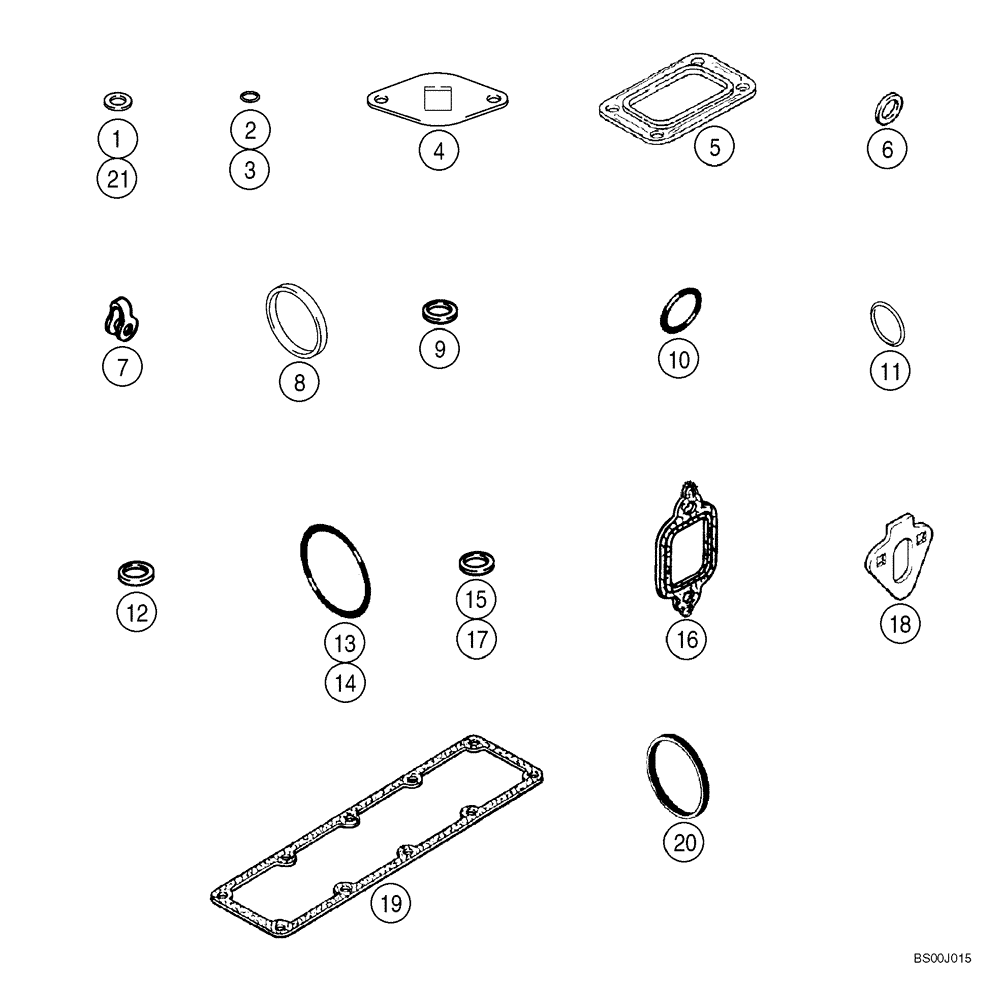

Запчасти Case IH 1845C (02-47) - GASKET KIT - 4T-390 EMISSIONS CERTIFIED ENGINE, USE WITH M4K ENGINE P/N 87456403 (02) - ENGINE

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

A77994

GASKET KIT

Incl. 1 - 21

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

Not Used in this Application

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Fig 02-09A; Not Illustrated

2шт.

3

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

See Fig 03-05, 03-05A

1шт.

4

J937706

GASKET,0.79mm Thk

Mounting; Not Used in this Application

2шт.

5

J919369

GASKET,0.5mm Thk

Mounting; Not Used in this Application

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Fig 02-09A

1шт.

7

J903380

SEAL

See Fig 03-04

4шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Fig 02-08

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1.5 mm; Replaces J906659; See Fig 03-04, 03-06

4шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; See Fig 02-11

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

15.6 ID x 1.68 wide; See Fig 03-06

4шт.

13

J910517

O-RING

See Fig 02-15

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Fig 02-17

1шт.

15

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm; Not Used in this Application

1шт.

16

J927154

GASKET,0.38mm Thk

Manifold; See Fig 02-09

4шт.

17

J930324

SEAL

0.5 mm; Not Used in this Application

1шт.

18

J939258

GASKET,1.21mm Thk

Mounting; Replaces J931059; See Fig 03-04A

1шт.

19

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; See Fig 02-09

1шт.

20

J935032

SEAL

See Fig 03-05, 03-05A

3шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm; See Fig 02-05; Replaces J935171

4шт.
