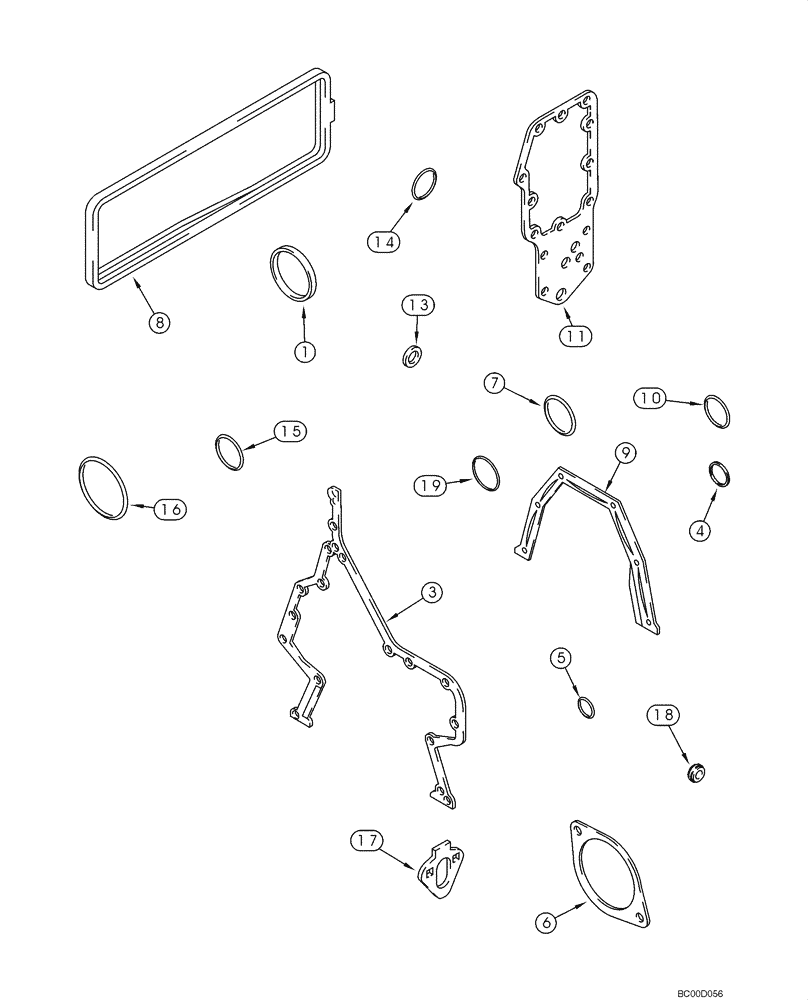

Запчасти Case IH 1845C (02-45) - GASKET KIT - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (02) - ENGINE

A78036

ENGINE GASKET KIT

Incl. 1 - 20; Models with Injection Pump J935677 and Front Gear Cover J286312

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Fig 02-11, 02-12

1шт.

3

J938156

GASKET,0.79mm Thk

Housing; See Fig 02-11, 02-12

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Fig 02-11, 02-12

1шт.

5

J913994

O-RING

See Fig 02-11, 02-12

1шт.

6

J938655

GASKET,1.27mm Thk

See Fig 02-12

1шт.

7

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16; See Fig 02-09

1шт.

8

J283767

GASKET,7.4mm Thk

Cover; See Fig 02-27, 02-28

1шт.

9

J938159

GASKET

Mounting; See Fig 02-31

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; See Fig 02-27, 02-28, 02-29

1шт.

11

J942914

GASKET

Mounting; See Fig 02-16

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Fig 02-18

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; See Fig 02-16

1шт.

15

J929457

O-RING

23/32 ID x 7/64; See Fig 02-16

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Fig 02-18

1шт.

17

J939258

GASKET,1.21mm Thk

Mounting; See Fig 03-05, 03-07

1шт.

18

J928759

SEALING WASHER

See Fig 02-28, 02-29

6шт.

19

J935032

SEAL

See Fig 03-09

1шт.

20

87413428

GASKET,1.2mm Thk

Mounting; See Fig 03-09, 03-10

1шт.
