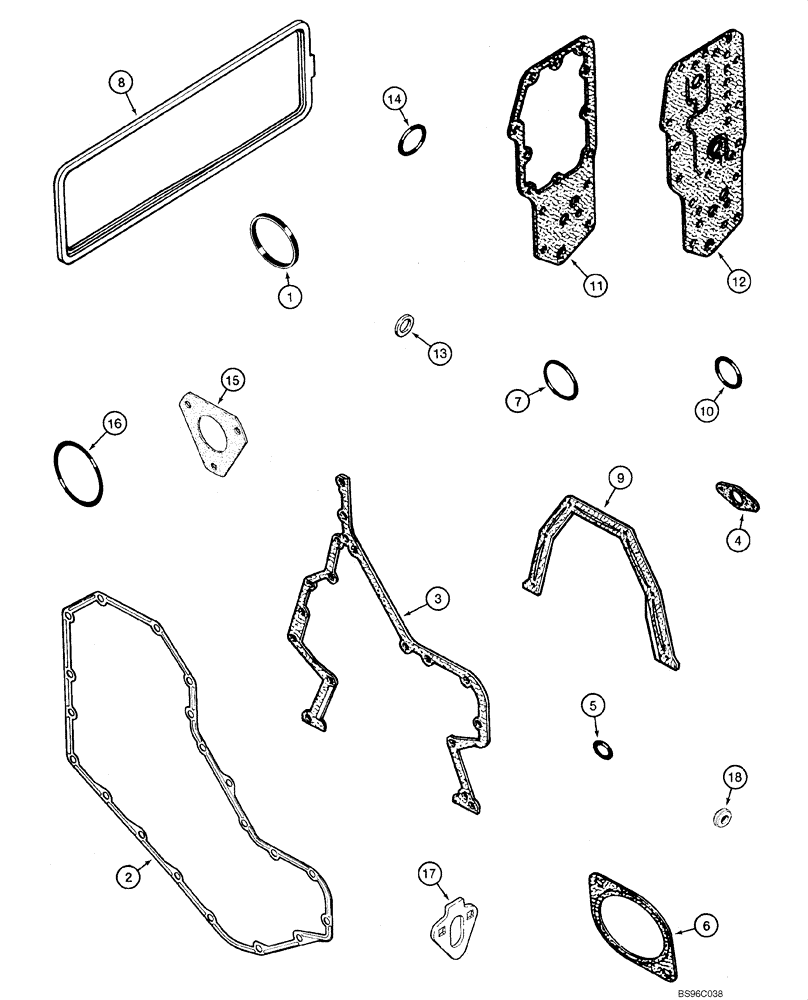

Запчасти Case IH 1845C (02-44) - GASKET KIT - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (02) - ENGINE

A77860

GASKET KIT

Incl. 1 - 18

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Fig 02-11

1шт.

2

J914385

GASKET,1.02mm Thk

Cover; See Fig 02-11

1шт.

3

J938156

GASKET,0.79mm Thk

Housing; See Fig 02-11; Replaces J931351

1шт.

4

J905595

GASKET

Not Used in this Application

1шт.

5

J913994

O-RING

See Fig 02-11

1шт.

6

J929751

GASKET

See Fig 02-11

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Fig 02-09

1шт.

8

J283767

GASKET,7.4mm Thk

See Fig 02-28

1шт.

9

J938159

GASKET

Mounting; Replaces J928493; See Fig 02-31

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; See Fig 02-27, 02-28

1шт.

11

J942914

GASKET

Mounting; See Fig 02-16

1шт.

12

J929792

GASKET,1.2mm Thk

Mounting; See Fig 02-16

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Fig 02-18

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; Not Used in this Application

1шт.

15

J931607

GASKET

Mounting; Not Used in this Application

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Fig 02-33

1шт.

17

J939258

GASKET,1.21mm Thk

Mounting; Replaces J931059; See Fig 03-05

1шт.

18

J928759

SEALING WASHER

See Fig 02-27, 02-28

6шт.
