Запчасти Case IH 1845C (02-42) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (02) - ENGINE

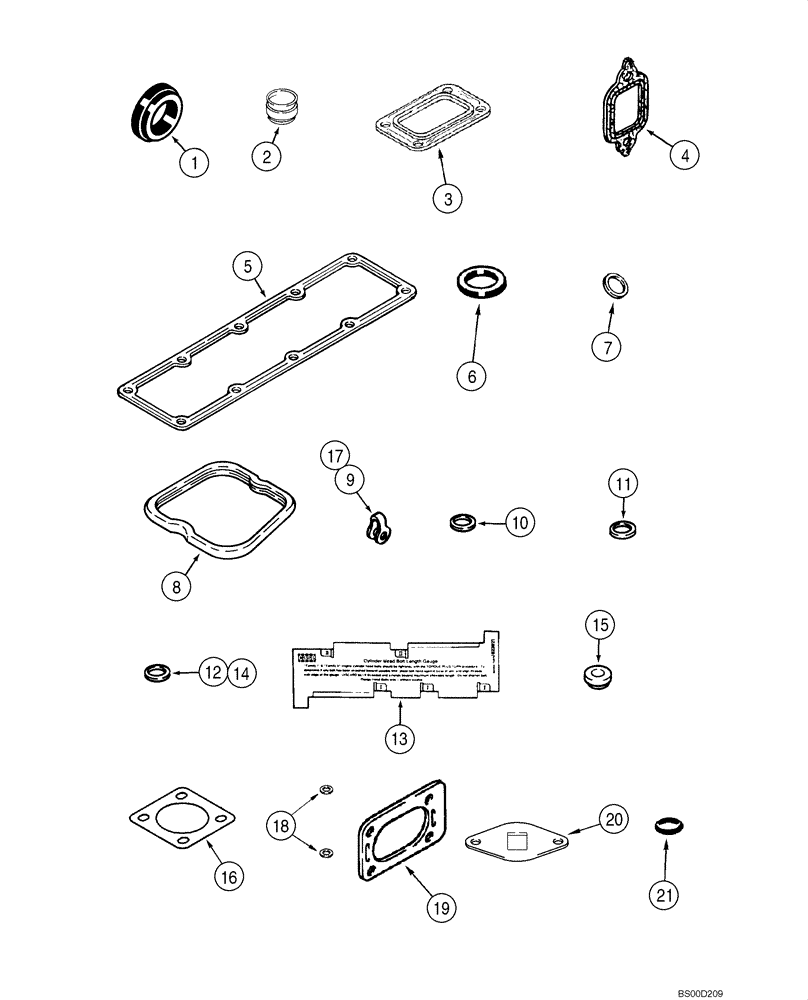

Схема запчастей Case IH 1845C - (02-42) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (02) - ENGINE
20
9
21
16
5
4
13
2
7
14
17
8
3
11
15
12
1
19
18
6
10

Артикул

Название

Примечание

Количество

87434406

GASKET

Incl. 1 - 21; Replaces 87405727

1шт.

1

J923331

GASKET

Housing; See Fig 02-20

1шт.

2

J921640

SEAL

See Fig 02-21

8шт.

3

J919369

GASKET,0.5mm Thk

Mounting; Not Used in this Application

1шт.

4

J927154

GASKET,0.38mm Thk

Manifold; Exhaust; See Fig 02-14

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; Intake; See Fig 02-14

1шт.

6

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

See Fig 02-12

1шт.

7

J900808

SEAL

See Fig 03-11

4шт.

8

J930906

GASKET

See Fig 02-20

4шт.

9

J903380

SEAL

See Fig 03-04

4шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1.5 mm tip; Not Used in this Application

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Fig 03-13

4шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm tip; See Fig 03-05

4шт.

13

87404692

GAUGE

1шт.

14

J930324

SEAL

0.5 mm tip; See Fig 03-13

4шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Fig 02-20

4шт.

16

J912220

GASKET,0.4mm Thk

Pipe; See Fig 02-02

1шт.

17

J903380

SEAL

See Fig 03-04

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

See Fig 03-07

2шт.

19

J914856

GASKET,1.02mm Thk

Mounting; Not Used in this Application

1шт.

20

J937706

GASKET,0.79mm Thk

Mounting; Not Used in this Application

1шт.

Выбрано товаров: 21
