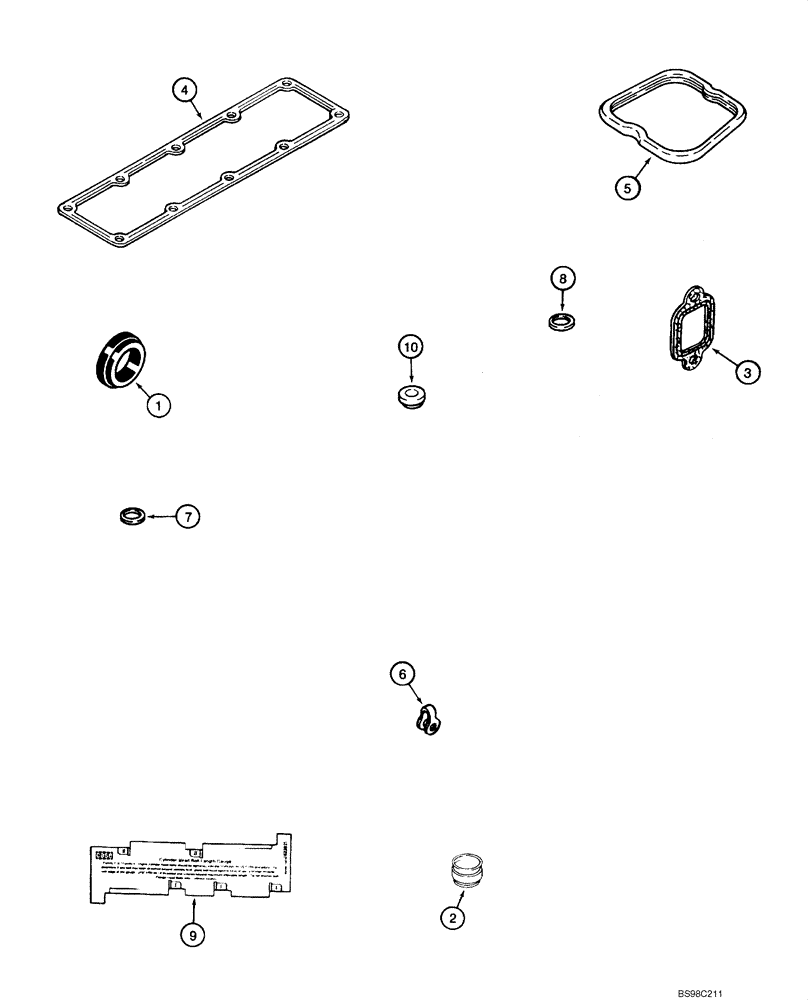

Запчасти Case IH 1845C (02-41) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (02) - ENGINE

A77975

GASKET KIT

Replaces A77931; Incl. 1 - 10; No Longer Used, Order 87434406; See Fig 02-42

1шт.

1

J923331

GASKET

Housing; See Fig 02-20

1шт.

2

J921640

SEAL

See Fig 02-23

8шт.

3

J905443

MANIFOLD GASKET

Manifold; See Fig 02-14; No Longer Available, Order J927154

4шт.

3

J927154

GASKET,0.38mm Thk

See Fig 02-14

4шт.

4

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; Replaces J931605; See Fig 02-14

1шт.

5

J930906

GASKET

See Fig 02-20

4шт.

6

J903380

SEAL

See Fig 03-04

4шт.

7

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm; See Fig 03-04, 03-13

4шт.

8

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Fig 03-13

4шт.

9

J823921

GAUGE

1шт.

10

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Fig 02-20

4шт.
