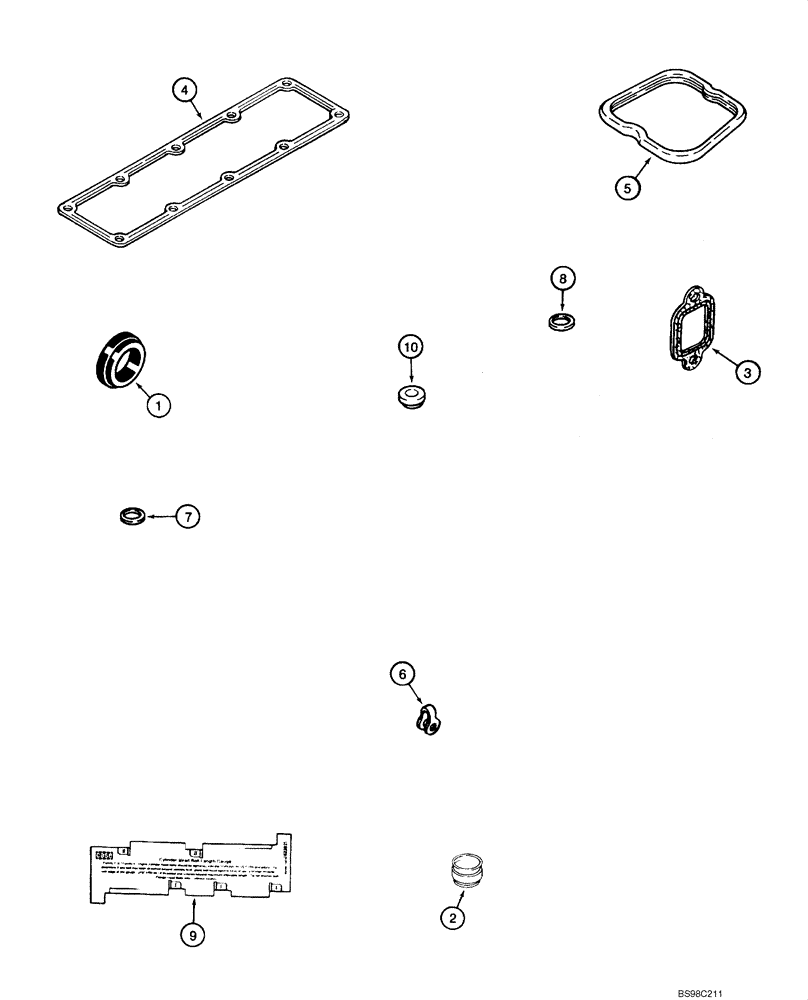

Запчасти Case IH 1845C (02-40) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J931397) (02) - ENGINE

A77911

SEAL PACKAGE

Engine No. 45636369 - 45705901; Incl. 1 - 10; No Longer Available, Order 87434406, See Fig 02-42

1шт.

1

J923331

GASKET

Housing; See Fig 02-20

1шт.

2

J901097

SEAL

See Fig 02-23; No Longer Available, Order J921640

4шт.

2

J921640

SEAL

See Fig 02-23

4шт.

3

J905443

MANIFOLD GASKET

Manifold; See Fig 02-14; No Longer Available, Order J927154

4шт.

3

J927154

GASKET,0.38mm Thk

See Fig 02-14

4шт.

4

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; Replaces J931605; See Fig 02-14

1шт.

5

J930906

GASKET

See Fig 02-20

4шт.

6

J903380

SEAL

See Fig 03-04

4шт.

7

J930324

SEAL

0.5 mm; See Fig 03-13

4шт.

8

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Fig 03-13

4шт.

9

J823921

GAUGE

1шт.

10

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Fig 02-20

4шт.
