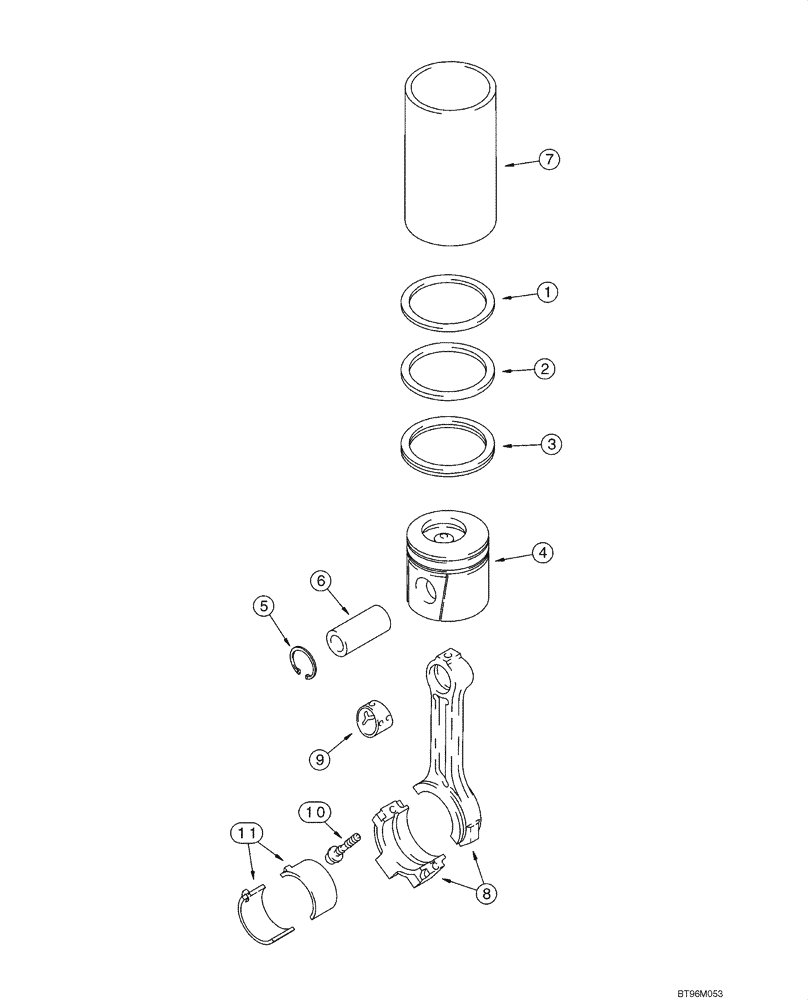

Запчасти Case IH 1845C (02-37) - PISTONS - CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J931397, J935677) (02) - ENGINE

J800681

SET OF PARTS

Kit, Piston; Standard; Incl. J804930, Ref 1 - 5; Use to Service Piston 3935441; Engine No. 45705901 -

4шт.

J800682

SET OF PARTS

Kit, Piston; Standard; Incl. J804930, Ref 1 - 5; Use to Service Piston 3935442; Engine No. 45705901 -

4шт.

J800683

SET OF PARTS

Kit, Piston; Standard; Incl. J804930, Ref 1 - 5; Use to Service Piston 3935443; Engine No. 45705901 -

4шт.

J804930

PISTON RING SET

Standard; Incl. 1 - 3; Engine No. 45705901 -

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top; Compression

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle; Compression

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

7

J904166

SLEEVE

Use with J800681, J800682, J800683

1шт.

J800684

SET OF PARTS

Kit, Piston; Oversize 0.5 mm; Incl. J804931, 1 - 5

4шт.

J804931

PISTON RING SET

Oversize 0.5 mm; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Cylinder; Oversize 0.5 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

J800685

SET OF PARTS

Kit, Piston; Oversize 1.0 mm; Incl. J804932, 1 - 5

4шт.

J804932

PISTON RING SET

Oversize 1.0 mm; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston; Oversize 1.0 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

8

87413279

ROD, CONNECTING

Incl. 8 - 10; Fractured Split

4шт.

8

87417069

REMAN-CONNECTING ROD

Remanufactured; Fractured Split

4шт.

8

87417070

CORE-ROD CONNECTING

Return Number

4шт.

9

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

Replaces J941476

1шт.

10

87413283

BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9

Replaces J900919

2шт.

11

87425525

CRANKSHAFT BEARING

Standard

4шт.

11

87425526

CRANKSHAFT BEARING

Undersize; 0.25 mm

4шт.

11

87425527

BEARING SET

Undersize; 0.50 mm

4шт.

11

87425528

CRANKSHAFT BEARING

Undersize; 0.75 mm

4шт.

11

87425529

CRANKSHAFT BEARING

Undersize; 1.00 mm

4шт.
