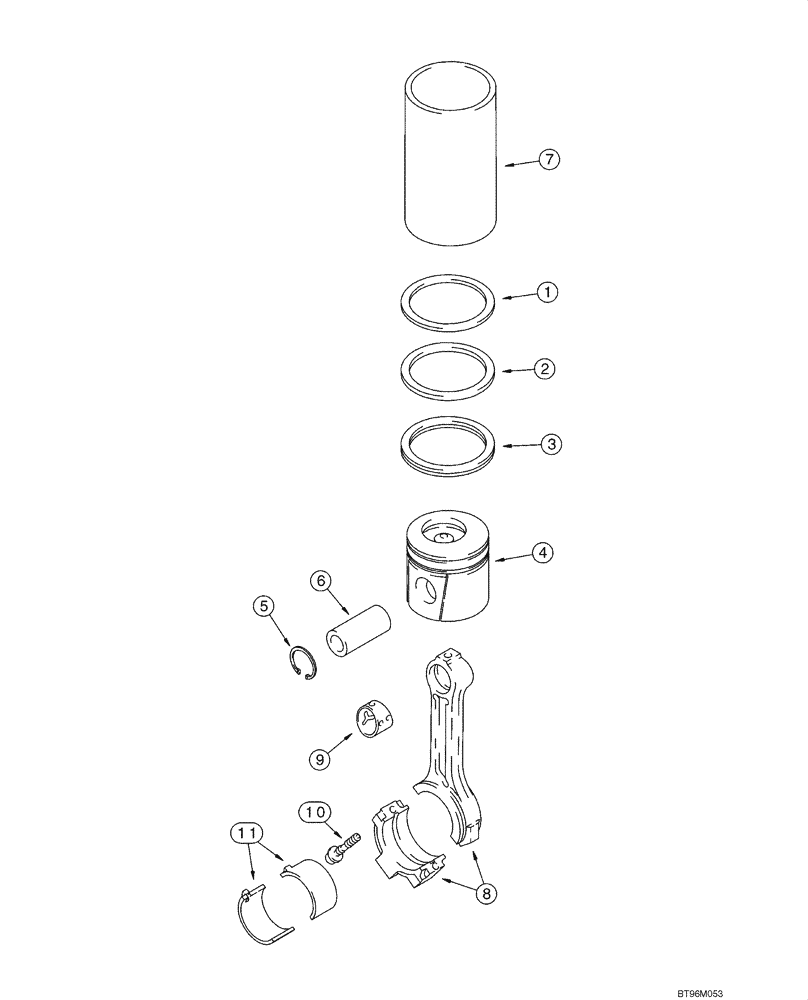

Запчасти Case IH 1845C (02-36) - PISTONS - CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J931397) (02) - ENGINE

J800455

PISTON ASSY.

Standard; Incl. J804930, 1 - 5; Use to Service Piston 3934985; Engine No. 45636369 - 45705901

4шт.

J804930

PISTON RING SET

Standard; Incl. 1 - 3; Engine No. 45636369 - 45705901

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Cylinder Standard

1шт.

5

J920691

SPECIAL RING

Ring; Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Pin; Replaces J919053

1шт.

7

J904166

SLEEVE

Use with J800455

1шт.

J800456

PISTON ASSY.

Oversize 0.5 mm; Incl. J804931, 1 - 5

4шт.

J804931

PISTON RING SET

Oversize 0.5 mm; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Cylinder; Oversize 0.5 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

J800457

PISTON ASSY.

Oversize 1.0 mm; Incl. J804932, 1 - 5

4шт.

J804932

PISTON RING SET

Oversize 1.0 mm; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Cylinder; Oversize 1.0 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

8

J942581

ROD, CONNECTING

Incl. 8 - 10; Machined; Machined Rods and Fractures Rods can not be used in the same Engine due to Weight Differences

4шт.

8

JR942581

REMAN-CONNECTING ROD

Machined

4шт.

8

JC901569

CORE-ROD CONNECTING

Return Number

4шт.

9

J941476

BUSHING

Part of J942581

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Standard

4шт.

11

A77466

BEARING SET

Undersize 0.25 mm

4шт.

11

A77467

BEARING LINER

Undersize 0.50 mm

4шт.

11

A77468

BEARING SET

Undersize 0.75 mm

4шт.

11

A77469

BEARING SET

Undersize 1.00 mm

4шт.

8

87413279

ROD, CONNECTING

Assy, Incl. 8 - 10; If Used; Fractured Split; Machined Rods and Fractures Rods can not be used in the same Engine due to Weight Differences

4шт.

8

87417069

REMAN-CONNECTING ROD

Assy, If Used, Fractured Split

4шт.

8

87417070

CORE-ROD CONNECTING

Return Number

4шт.

9

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

1шт.

10

87413283

BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9

M11 x 59

2шт.

11

87425525

CRANKSHAFT BEARING

Standard

4шт.

11

87425526

CRANKSHAFT BEARING

Undersize; 0.25 mm

4шт.

11

87425527

BEARING SET

Undersize; 0.50 mm

4шт.

11

87425528

CRANKSHAFT BEARING

Undersize; 0.75 mm

4шт.

11

87425529

CRANKSHAFT BEARING

Undersize; 1.00 mm

4шт.
