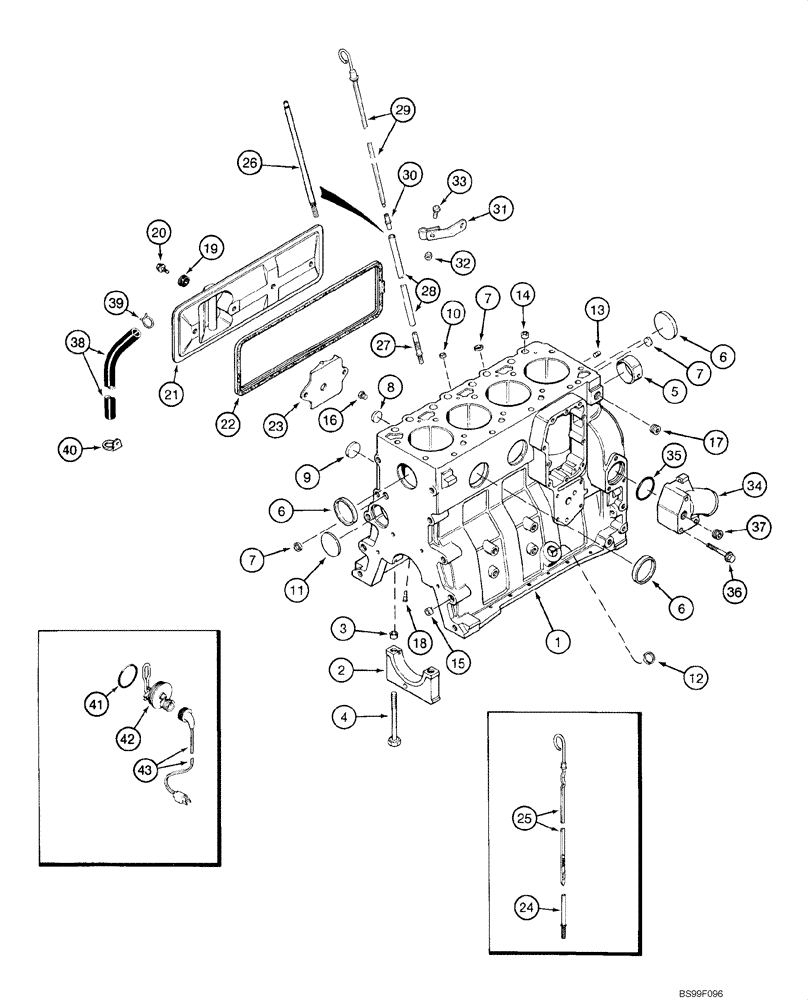

Запчасти Case IH 1845C (02-26) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE

1989074C2

ENGINE ASSEMBLY

ENGINE ASSY Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe; North America Only; Order 1989091C2

1шт.

1989074C2R

REMAN-REPLACEMENT EN

Reman For New P/N 1989074C2

1шт.

1989074C2C

CORE-REPLACEMENT ENG

Return Part Number

1шт.

1989115C2

ENGINE ASSEMBLY

ENGINE ASSY Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe; Europe Only; Order 1989091C2

1шт.

1989091C3

BASIC ENGINE

Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel And Housing, Oil Fill And Dipstick, Fuel Injection Pump, Injectors and Lines, Front Crank Pulley and Belt Tensioner; See Note

1шт.

47465894R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 4 bolt injection pump front housing

1шт.

47465894C

CORE-BASIC ENGINE

Return Part Number

1шт.

1989091C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR933238

REMAN-SHORT ENGINE

Short, Remanufactured, Replaces AR77758, Order J920384

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

AR77758

BLOCK ASSY.

Reman For New P/N 1989091C3

1шт.

AC77758

CORE-ENGINE

Return Part Number

1шт.

J920384

BLOCK ASSY.

Short; Incl. Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Replaces A77758; Incl. 1 - 8; Also Order J920399, Ref 9 - 18

1шт.

1

J916254

BLOCK ASSY.

Stripped; Replaces A77757; Incl. 2 - 8; Also Order J920399, Ref 9 - 18

1шт.

2

J903492

BEARING CAP

Replaces J900967

5шт.

3

J900068

BEARING WASHER

18 mm OD; No Longer Available

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing; Front; See Fig 02-24, Ref 2

1шт.

6

A77782

PLUG

58 mm; Expansion

4шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

Block Hardware; Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

41-3038

PLUG,Exp, 2 3/8"

(60 mm OD); Replaces 172599

1шт.

12

J920706

PLUG

22 mm; Replaces A77439

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

1/8 PT; Replaces J906619

2шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

18

J901020

NOZZLE CAP

Engine No. - 44511033

4шт.

18

J937214

NOZZLE CAP

Engine No. 44511034 - ; Replaces J919002

4шт.

19

J900267

SEAL

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J936186

COVER

Replaces J925680, J905023 and J916441

1шт.

22

J283767

GASKET,7.4mm Thk

Replaces J904056, J922078

1шт.

23

J907586

BAFFLE

1шт.

24

J905127

TUBE,9.52 mm OD x 180 mm L

If used

1шт.

25

J904287

DIPSTICK

If used

1шт.

26

J279248

TUBE

Replaces J922889; Used with Ref. 29; J908311; If used

1шт.

27

A77645

TUBE

Used with Ref. 28; J908306; If used

1шт.

28

J908306

TUBE

If used

1шт.

29

J908311

DIPSTICK,914.3mm L

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

Used with J908306; If used

1шт.

31

J917762

BRACE

1шт.

32

825-1408

NUT,M8, Cl 8

1шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

34

J934877

HYD CONNECTOR

Replaces J903102

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

36

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

Replaces 854-10075

3шт.

37

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

38

J918612

TUBE,360.00 mm

Replaces J906593

1шт.

39

J904230

CLAMP,25.4mm

1шт.

40

J909670

CLIP

1шт.

196803A1

KIT

Engine Block Heater; Replaces A77634; Incl. 41 - 43

1шт.

41

J910517

O-RING

1шт.

42

J916127

RESISTOR

Element, 120 V

1шт.

43

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.
