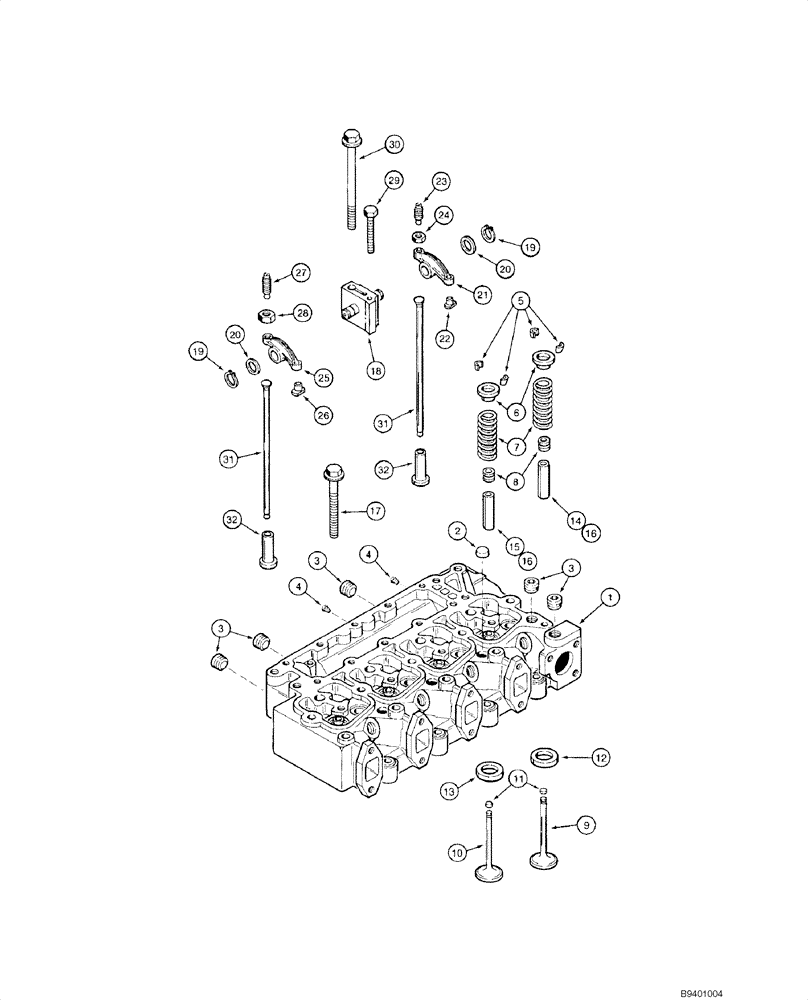

Запчасти Case IH 1845C (02-23) - CYLINDER HEAD - VALVE MECHANISM, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
JR933494
REMAN-CYLINDER HEAD
North America Only
1шт.
JC929736
CORE-CYLINDER HEAD
Return Number; Replaces JC905864
1шт.
J933494
HEAD (CYLINDER)
With Valves; Incl. 1, 2, 4 - 11
1шт.
1
J933419
HEAD (CYLINDER)
Without Valves; Incl. 2; Replaces J920005
1шт.
2
A77783
PLUG
21 mm OD; Expansion
3шт.
3
217-466
DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF
5шт.
4
J906619
PLUG,1/8" - 27
1/8 PT
2шт.
5
CASJ900250
RETAINER
16шт.
6
J935038
RETAINER
Replaces J900299
8шт.
7
J932453
SPRING
8шт.
8
J921640
SEAL
Replaces J901097
8шт.
9
J920867
VALVE
Intake
4шт.
10
J920868
VALVE
Exhaust
4шт.
11
J910412
WEAR PAD
Service Repair Only; Replaces J280911
1шт.
12
J906854
SEAT, VALVE
Intake; Service Repair Only
4шт.
13
J904105
SEAT, VALVE
Exhaust; Service Repair Only
4шт.
14
J904408
GUIDE
14 mm OD; Intake; Service Repair Only;, Serial Range: Ream-Fit
4шт.
15
J904409
GUIDE
14 mm OD; Exhaust; Service Repair Only;, Serial Range: Ream-Fit
4шт.
17
J920779
BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9
70 mm
4шт.
17
J920780
BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9
120 mm
10шт.
18
J922488
SUPPORT
4шт.
19
J900242
SNAP RING
8шт.
20
J900245
WASHER
8шт.
21
J910811
ROCKER
Arm Assy; Incl. 22 - 24
4шт.
22
NSS
NOT SOLD SEPARAT
Insert
1шт.
23
J937438
ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point
Replaces J900706
1шт.
25
J910810
ROCKER
Arm Assy; Incl. 26 - 28
4шт.
26
NSS
NOT SOLD SEPARAT
Insert
1шт.
27
J937438
ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point
Replaces J900706
1шт.
29
J901221
BOLT
M8 x 75; Replaces 814-8075
4шт.
30
J920781
BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9
180 mm
4шт.
31
J284377
PUSH ROD
Replaces J923262
8шт.
Выбрано товаров: 36
