(09-82) - BACKHOE - STABILIZERS, D125 (NORTH AMERICA)

Запчасти Case IH 1845C (09-82) - BACKHOE - STABILIZERS, D125 (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

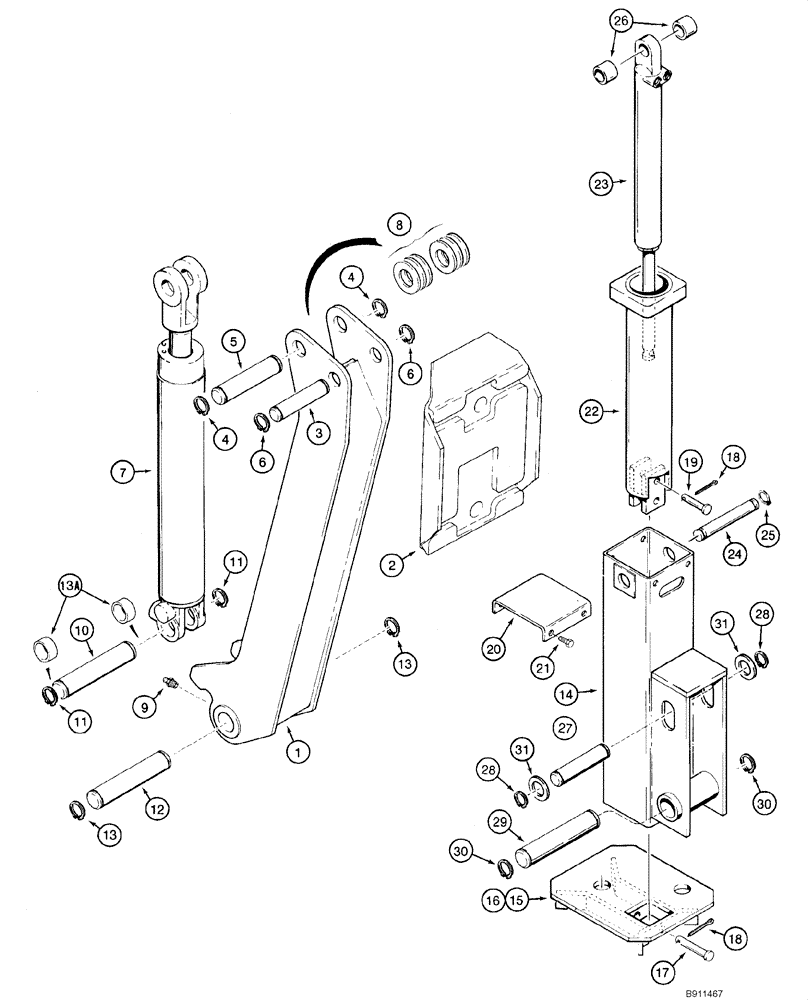

Схема запчастей Case IH 1845C - (09-82) - BACKHOE - STABILIZERS, D125 (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS
13
14
10
23
13
1
26
17
18
4
16
5
27
6
8
31
19
11
22
3
2
30
21
24
31
18
11
28
12
29
25
9
7
13a
20
4
30
15
28
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H674650

STABILIZER

Fold Down

2шт.

2

H434430

LARGE PLATE

PLATE, LARGE

2шт.

3

H434379

PIN,28.63mm OD x 151mm L

2шт.

4

103-16125

SNAP RING,#125, Ext

4шт.

5

H434380

PIN

2шт.

6

100-16112

SNAP RING,#112, Ext

4шт.

7

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

76 ID x 406 mm strk; See Fig 08-49

2шт.

8

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32

12шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

10

H434381

PIN,31.8mm OD x 31.8mm L

2шт.

11

103-16125

SNAP RING,#125, Ext

4шт.

12

H434382

PIN,38.15mm OD x 204mm L

2шт.

13

D25279

SNAP RING,M35, Int

4шт.

13a

103502A1

SPECIAL NUT

4шт.

14

H674844

STABILIZER

Vertical

2шт.

15

H514570

PAD

RH

1шт.

16

H514562

PAD

LH

1шт.

17

H120683

PIN,15.88mm OD x 94.06mm L

2шт.

18

432-816

COTTER PIN,1/8" x 1"

4шт.

19

H51870

PIN

2шт.

20

H438853

COVER

2шт.

21

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

8шт.

22

H514554

STABILIZER

2шт.

23

H514117

CYLINDER BLOCK

51 ID x 305 mm strk; See Fig 08-68

2шт.

24

H50831

PIVOT PIN,28.57mm OD x 139.7mm L

2шт.

25

103-11112

SNAP RING,#112, Ext

4шт.

26

H52068

SPACER

4шт.

27

H434381

PIN,31.8mm OD x 31.8mm L

Upper

2шт.

28

103-16125

SNAP RING,#125, Ext

4шт.

29

H434382

PIN,38.15mm OD x 204mm L

Lower

2шт.

30

D25279

SNAP RING,M35, Int

4шт.

31

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32

4шт.
