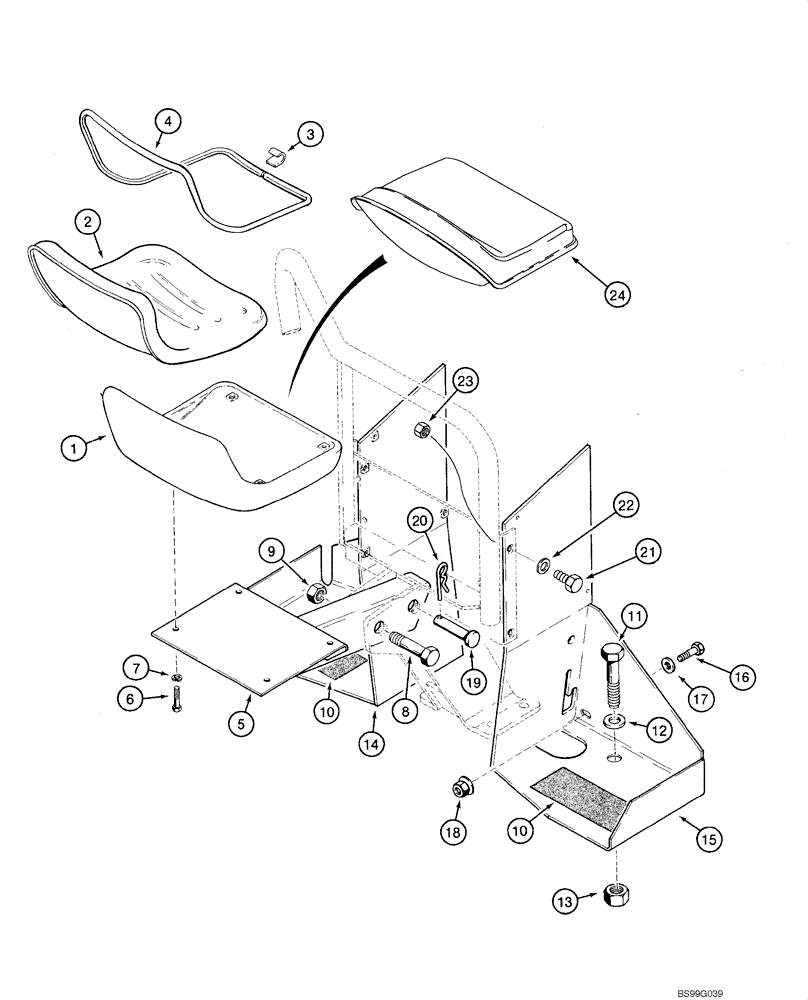

Запчасти Case IH 1845C (09-81) - BACKHOE - SEAT AND FOOT SHIELDS, D125 (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

H436146

SEAT

Brown; Incl. 1 - 4; If Equipped

1шт.

1

NSS

NOT SOLD SEPARAT

Seat

1шт.

H429316

SEAT

Incl. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion

1шт.

3

NSS

NOT SOLD SEPARAT

Clip

1шт.

4

NSS

NOT SOLD SEPARAT

Trim

1шт.

5

H673473

LARGE PLATE

PLATE, LARGE

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

492-11031

LOCK WASHER,5/16"

4шт.

8

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

1шт.

9

230-42112

LOCK NUT,3/4"-10, GA

1шт.

10

H386334

FLOOR MAT

2шт.

11

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

2шт.

13

230-42116

LOCK NUT,1"-8, GA

2шт.

14

H674622

LARGE PLATE

PLATE, LARGE LH

1шт.

15

H674623

LARGE PLATE

PLATE, LARGE RH

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

H426775

WASHER

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

19

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

4 x 3-1/2

1шт.

20

136-164

COTTER PIN,Int, 5/16" x .120"

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

23

232-4116

NUT,3/8"-16, GC

4шт.

24

179332A1

SEAT

Gray; Component Parts Not Serviced Separately; If Equipped; No Longer Available; Order 440454A1

1шт.

24

440454A1

SEAT

Wheat; Component Parts Not Serviced Separately

1шт.
