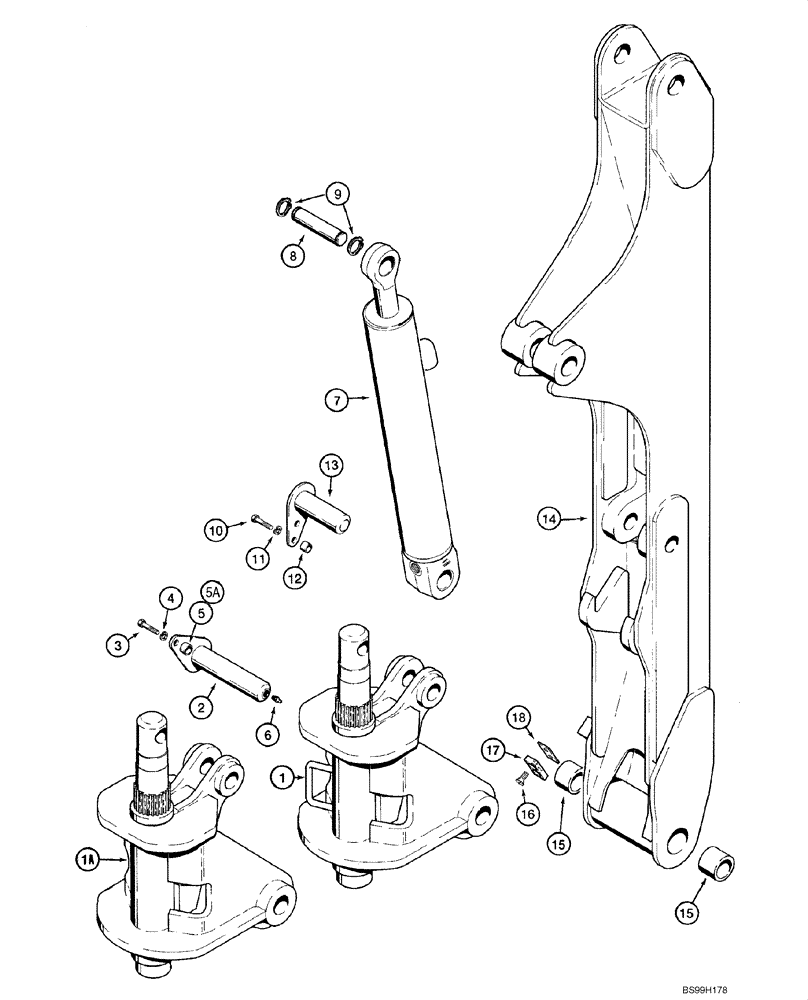

Запчасти Case IH 1845C (09-80) - BACKHOE - SWING TOWER AND BOOM, D125 (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

1

H674114

POST

Tower, Swing; With Hose Retaining Rod; If Equipped

1шт.

1a

259238A1

PIVOT ASSY.

Tower, Swing; Without Hose Retaining Rod; If Equipped

1шт.

2

H674111

PIN

1шт.

3

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

Replaces 413-628

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

Replaces D95553; Used with H674114, Ref 1

1шт.

5a

349191A1

SPACER

Used with 259238A1, Ref 1A

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

REF

INSTRUCTION

Cylinder, 76 ID x 551 mm strk; Boom; See Figs 08-64, 08-65

1шт.

8

H437348

PIN,38.15mm OD x 171mm L

1шт.

9

100-16150

SNAP RING,#150, Ext

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

H438253

SPACER

1шт.

13

H674112

PIN

1шт.

H674107

BOOM

Incl. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Boom

1шт.

15

H437317

BUSHING

2шт.

16

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

2шт.

17

H439260

BAR

1шт.

18

H439261

BAR

3шт.
