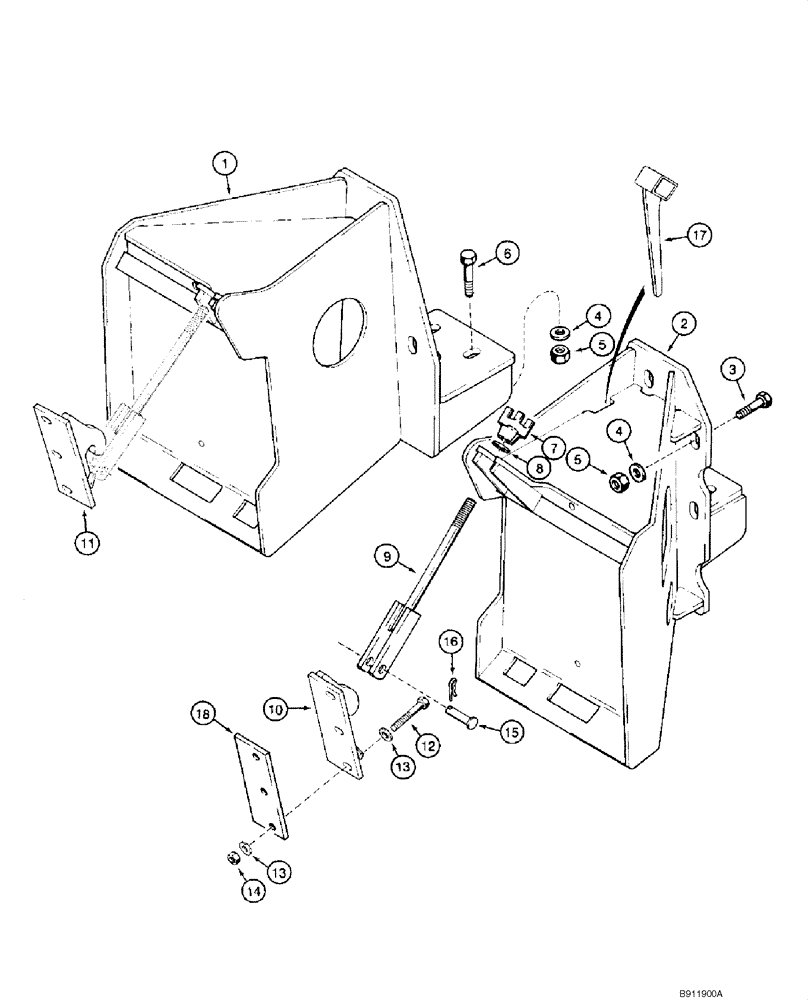

Запчасти Case IH 1845C (09-78) - BACKHOE - FRAME, D125 (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

1

H674134

MOUNTING PARTS

Backhoe; LH

1шт.

2

H674956

LARGE PLATE

PLATE, LARGE Backhoe; RH

1шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

10шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

14шт.

5

232-41112

NUT,3/4"-10, GC

14шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

7

D134787

KNOB

2шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

9

H673638

TRUSS ROD

2шт.

10

110906A1

LARGE PLATE

PLATE, LARGE

1шт.

11

110905A1

LARGE PLATE

PLATE, LARGE

1шт.

12

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

14

232-4118

NUT,1/2"-13, GC

6шт.

15

27-12191

CLEVIS PIN,3/4" x 1.910"

3/4 x 1-3/16

2шт.

16

136-164

COTTER PIN,Int, 5/16" x .120"

2шт.

17

H675159

NUT ASSY.

1шт.

18

139019A1

PLATE

2шт.
