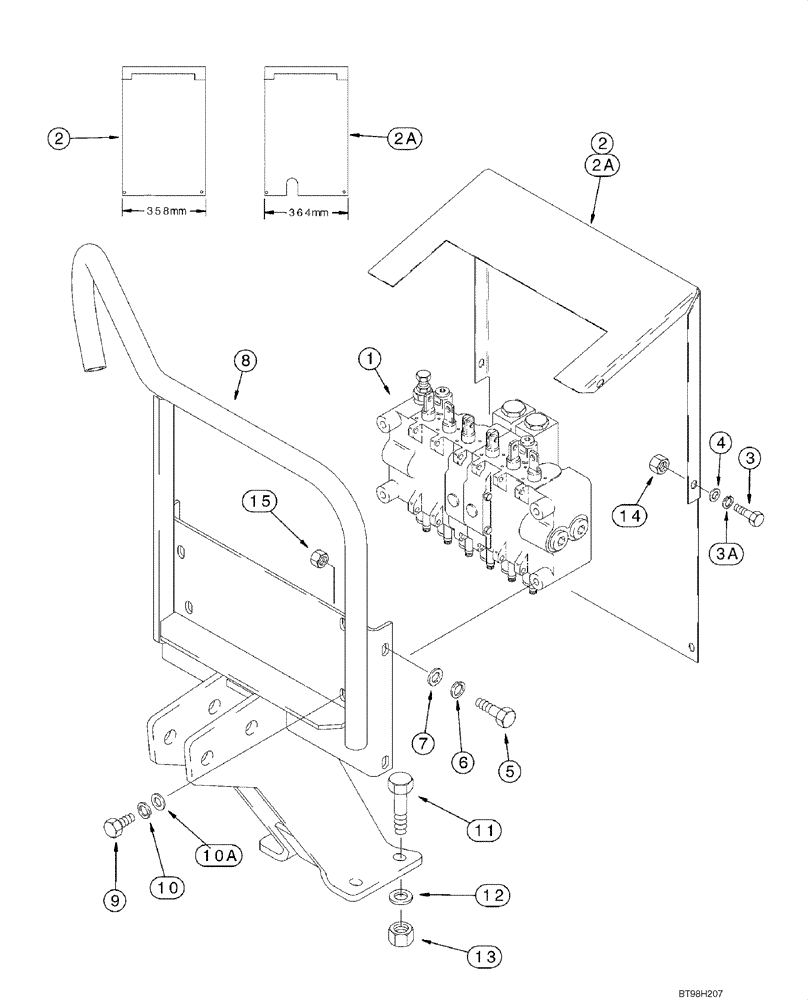

Запчасти Case IH 1845C (09-77) - BACKHOE - CONTROL TOWER, D125 (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

1

H674500

VALVE

Backhoe; See Fig 08-61 - 08-63

1шт.

1

87400034

VALVE

Control; Backhoe; Replaces H764500; See Fig 08-61 - 08-63

1шт.

2

H438359

COVER

Without opening at bottom; If equipped

1шт.

2a

257301A1

SHEET

With opening at bottom

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

Used on foot guards with no welded on nuts

4шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used on foot guards with weld on type nuts

4шт.

3a

492-11031

LOCK WASHER,5/16"

If used

4шт.

4

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

If used

4шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

8

H674133

CONSOLE

Valve Mounting

1шт.

9

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

10a

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

11

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

4шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

13

230-4218

LOCK NUT,1/2"-13, GA

4шт.

14

232-4115

LOCK NUT,5/16"-18, GC

4шт.

15

232-4116

NUT,3/8"-16, GC

4шт.
