(09-76) - DECALS - BACKHOE, D100, D100XR (NORTH AMERICA)

Запчасти Case IH 1845C (09-76) - DECALS - BACKHOE, D100, D100XR (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

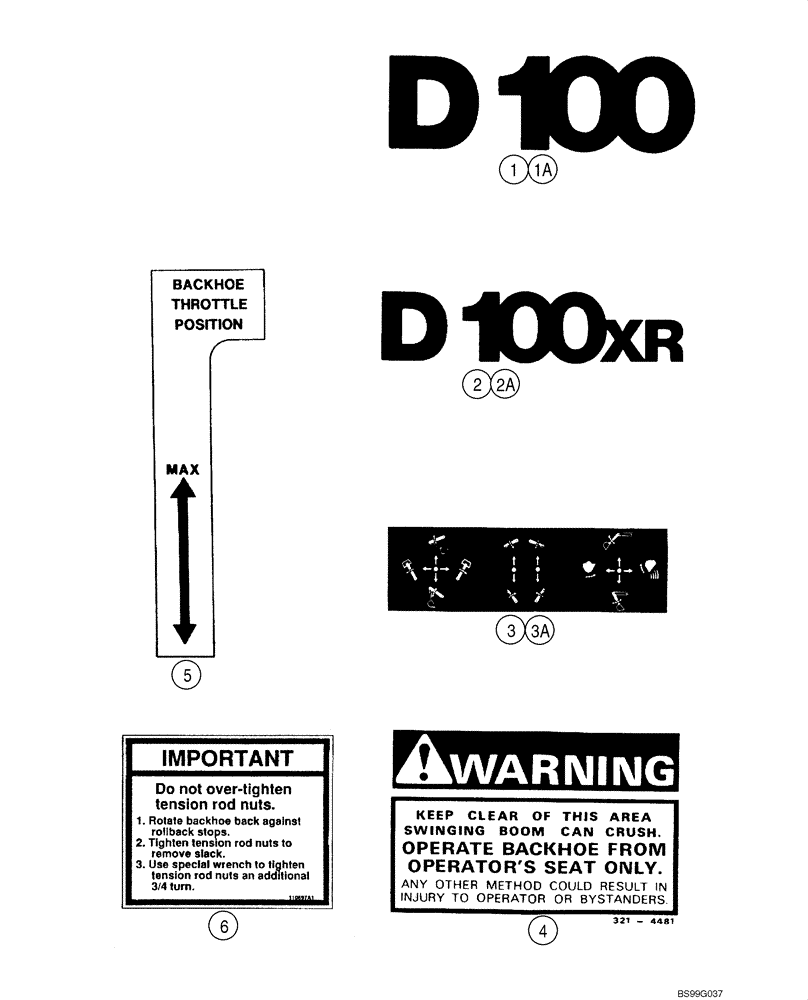

Схема запчастей Case IH 1845C - (09-76) - DECALS - BACKHOE, D100, D100XR (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS
3a
6
1
3
4
2a
5
2
1a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H427559

DECAL

Model; Brown

2шт.

1a

179112A1

DECAL

Model; Gray

2шт.

2

H427542

DECAL

Model; Brown

2шт.

2a

179111A1

DECAL

Model; Gray

2шт.

3

D123978

DECAL

Brown

1шт.

3a

179079A1

DECAL

Gray

1шт.

4

321-4481

DECAL

Warning Keep Clear

4шт.

5

H434646

DECAL

Backhoe Control Pattern

1шт.

6

110897A1

DECAL

Important Do Not Over-Tighten

2шт.
