(09-71) - BACKHOE - STABILIZERS, D100XR (NORTH AMERICA), WITH CESSNA VALVE

Запчасти Case IH 1845C (09-71) - BACKHOE - STABILIZERS, D100XR (NORTH AMERICA), WITH CESSNA VALVE (09) - CHASSIS/ATTACHMENTS

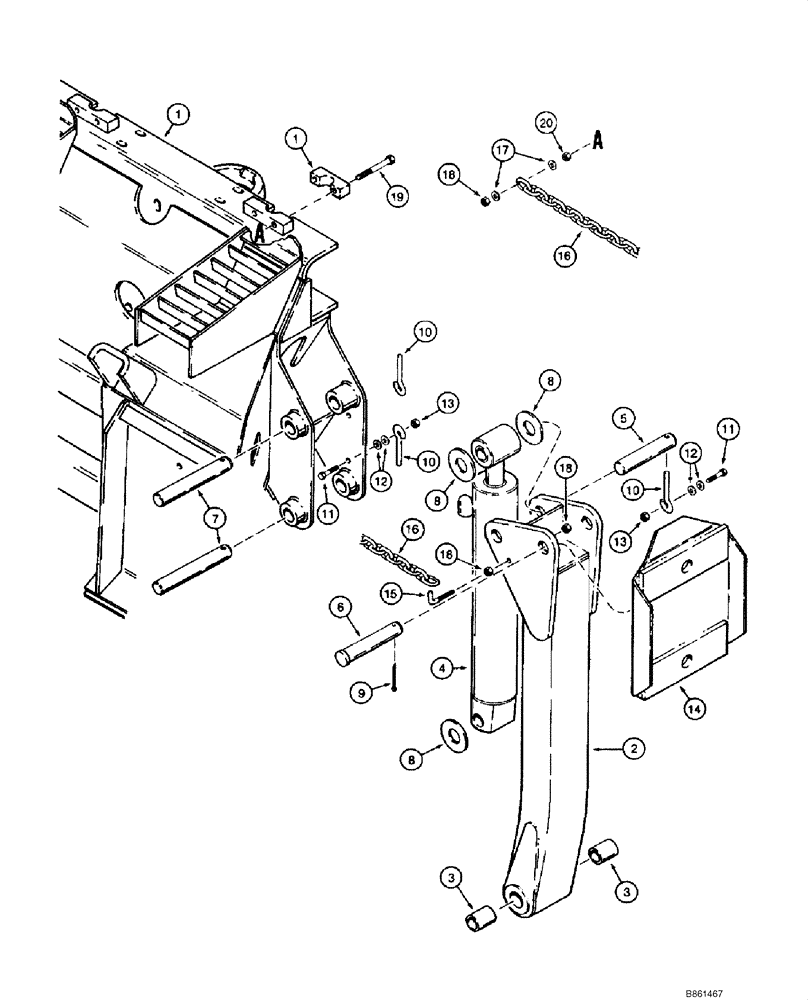

Схема запчастей Case IH 1845C - (09-71) - BACKHOE - STABILIZERS, D100XR (NORTH AMERICA), WITH CESSNA VALVE (09) - CHASSIS/ATTACHMENTS
8
6
13
4
16
15
11
12
1
10
12
8
18
17
19
8
9
3
3
18
14
10
7
18
20
16
2
11
6
1
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D134808

FRAME

See Fig 09-68

1шт.

2

H642975

STABILIZER

Incl. 3

2шт.

3

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

2шт.

4

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

76 ID x 372 mm strk; Stabilizer; See Fig 08-46

2шт.

5

H109801

AXLE PIN

2шт.

6

H79285

PIN

2шт.

7

H382234

PIN

4шт.

8

495-81289

WASHER,1.25" ID x 2.75" OD x 0.16" Thk

1шт.

9

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.

10

H313981

PIN

6шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

12шт.

13

230-4216

LOCK NUT,3/8"-16, GA

6шт.

14

H434430

LARGE PLATE

PLATE, LARGE

2шт.

15

H429209

HOOK

2шт.

16

H429217

CHAIN (AG)

2шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

18

230-4216

LOCK NUT,3/8"-16, GA

6шт.

19

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Incl. with D134808, Ref 1

2шт.

20

230-4216

LOCK NUT,3/8"-16, GA

Incl. with D134808, Ref 1

2шт.
