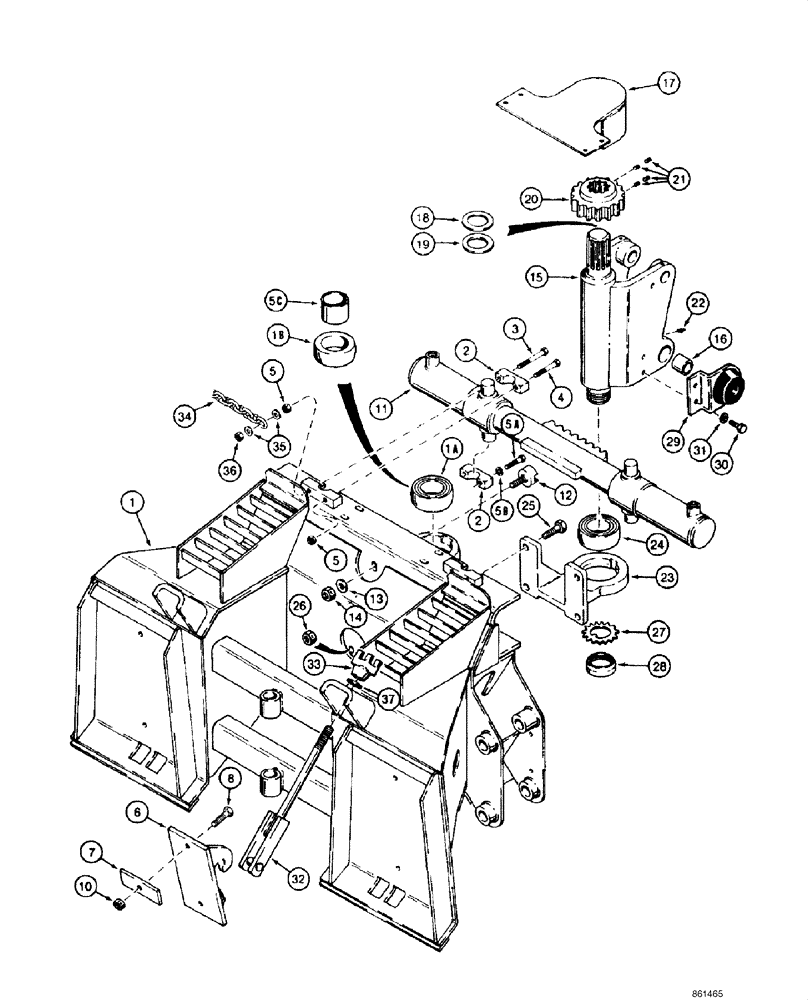

Запчасти Case IH 1845C (09-68) - BACKHOE FRAME - SWING TOWER, D100XR (NORTH AMERICA), WITH CESSNA VALVE (09) - CHASSIS/ATTACHMENTS

D134808

FRAME

Incl. 1 - 5B

1шт.

1

NSS

NOT SOLD SEPARAT

Frame

1шт.

1a

958334R91

BALL BEARING,55.63mm ID x 100mm OD x 33.34mm W

No Longer Used, Order H434032 (Ref 1B); H434219 (Ref 5C)

1шт.

1b

H434031

BEARING

Bearing, Pivot; Replaces 958334R91, Ref 1A; Used with H434219, Ref 5C; No Longer Available, Order H673658

1шт.

2

NSS

NOT SOLD SEPARAT

Cap; Matched Set; Order H656108

4шт.

3

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

4

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

5

230-4216

LOCK NUT,3/8"-16, GA

4шт.

5a

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

5b

492-11038

LOCK WASHER,3/8"

4шт.

5c

H434219

KIT

Used with H434031; No Longer Available, Order H673658; See Fig 09-68

1шт.

6

D134789

HOOK

2шт.

7

D137025

PLATE

4шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

4шт.

10

232-4118

NUT,1/2"-13, GC

4шт.

11

H514125

CYLINDER ASSY.

70 ID x 203 mm strk; Swing; See Fig 08-50; No Longer Available, Order 384865A1

1шт.

11

384865A1

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); See Fig 08-69B

1шт.

H656108

CAP ASSY.

Swing Cylinder; Retaining; Incl. (2) H248716, (1) 326-656, (1) H718866, (2) 495-11041, (2) 232-4116; No Longer Available, Order Components

1шт.

12

CASH50377

GUIDE

1шт.

13

495-11066

WASHER,5/8", SAE

(21/32 x 1-5/16 x 3/32)

1шт.

14

131-1171

LOCK NUT,5/8"-18, GB

1шт.

15

H514596

POST

Incl. 16

1шт.

16

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

2шт.

17

H514380

COVER ASSY

1шт.

18

H433285

SPACER

Used with H747170; If used

1шт.

19

H433284

SPACER

3 mm (1/8 in); Used with H747170; If used

1шт.

20

H50369

GEAR WHEEL

Swing

1шт.

21

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

8 x 3/4 cn pt

4шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

H571927

BEARING ASSY

Bracket; No Longer Available, Order H50724, Ref 23A

1шт.

23a

H50724

HOLDER

Incl. 24

1шт.

24

958334R91

BALL BEARING,55.63mm ID x 100mm OD x 33.34mm W

1шт.

25

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

26

131-1130

LOCK NUT,5/8"-11, GA

4шт.

27

192-311

BEARING WASHER,Bearing, W-11

1шт.

28

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

N-11

1шт.

29

H625756

BRACKET

2шт.

30

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

32

D134783

CLEVIS

2шт.

33

D134787

KNOB

2шт.

34

H429217

CHAIN (AG)

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

36

230-4216

LOCK NUT,3/8"-16, GA

2шт.

37

495-11081

WASHER,3/4", SAE

2шт.

H673658

KIT

Incl. 39 - 44

1шт.

39

H436152

SLEEVE

Not Illustrated

1шт.

40

H436331

SPHERICAL BEARING

Not Illustrated

1шт.

41

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

Not Illustrated

1шт.

42

83-2386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Cone pt; Not Illustrated

1шт.

43

345-104

ADHESIVE

Not Illustrated

1шт.
