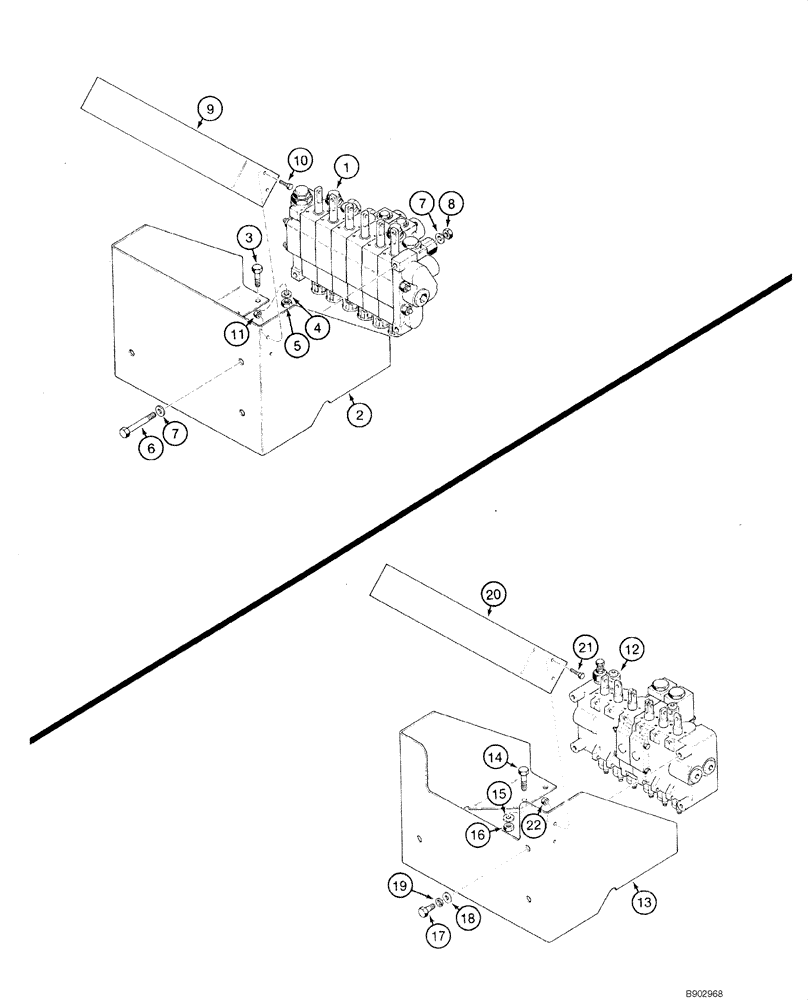

Запчасти Case IH 1845C (09-66) - BACKHOE - CONTROL TOWER, D100, D100XR (NORTH AMERICA), WITH KONTAK OR DUKE VALVES (09) - CHASSIS/ATTACHMENTS

1

H672636

VALVE

KONTAK; Backhoe; See Fig 08-38 - 08-42; No Longer Available, Order H674300, REF 12

1шт.

2

H434424

BRACKET

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

5

230-4216

LOCK NUT,3/8"-16, GA

4шт.

6

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

8

230-4216

LOCK NUT,3/8"-16, GA

3шт.

9

H437849

LARGE PLATE

PLATE, LARGE

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

230-4214

LOCK NUT,1/4"-20, GA

4шт.

12

H674300

VALVE

DUKES; Backhoe; See Fig 08-43 - 08-45

1шт.

12

87400023

VALVE

Control; Backhoe; Replaces H674300; See Fig 08-43 - 08-45

1шт.

13

H437850

BRACKET

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

16

230-4216

LOCK NUT,3/8"-16, GA

4шт.

17

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

18

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

3шт.

19

492-11031

LOCK WASHER,5/16"

3шт.

20

H437849

LARGE PLATE

PLATE, LARGE

1шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

22

230-4214

LOCK NUT,1/4"-20, GA

4шт.
