(09-63) - DECALS - ITALIAN (D.G.M.)

Запчасти Case IH 1845C (09-63) - DECALS - ITALIAN (D.G.M.) (09) - CHASSIS/ATTACHMENTS

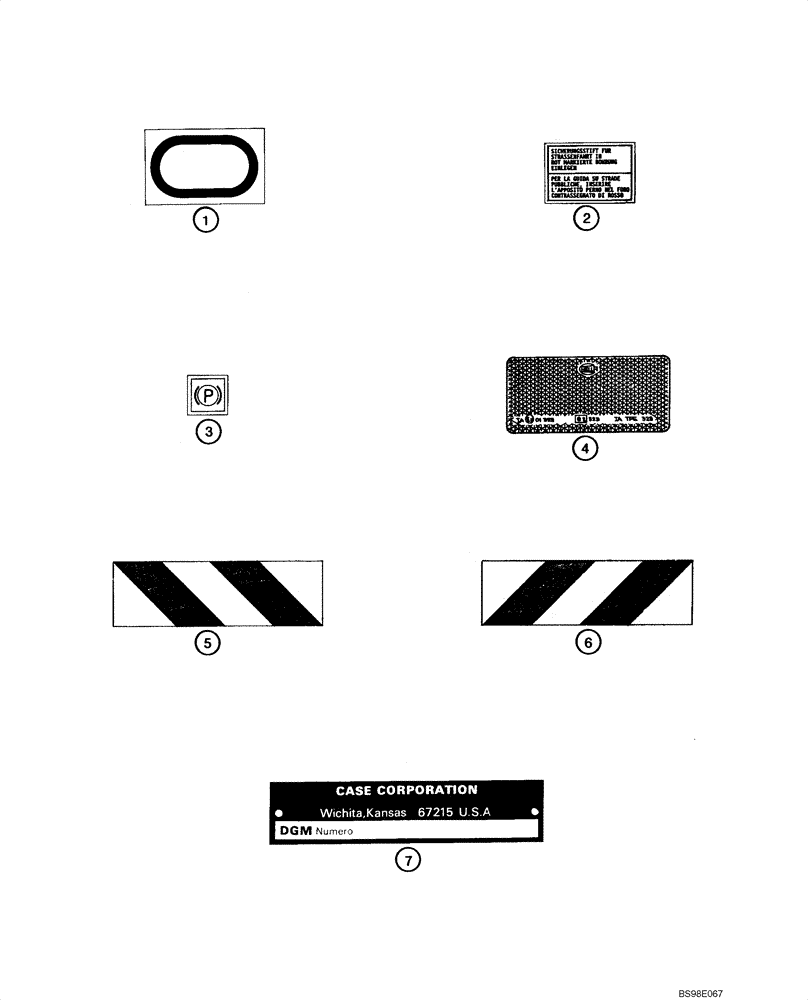

Схема запчастей Case IH 1845C - (09-63) - DECALS - ITALIAN (D.G.M.) (09) - CHASSIS/ATTACHMENTS
5
7
1
3
6
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H439133

DECAL

Grease Fitting Locator

2шт.

2

124910A1

DECAL

Loader Lock

2шт.

3

254504A1

DECAL

Parking Brake

1шт.

4

121573A1

REFLECTOR,94mm L X 44mm W

Red

1шт.

5

189174A1

DECAL

Reflector; Bucket; LH

1шт.

6

189175A1

DECAL

Reflector; Bucket; RH

1шт.

7

192273A1

TYPE PLATE

DGM Number

1шт.

8

127550A1

ADHESIVE STRIP

150 x 35 mm; Not Illustrated

1шт.
