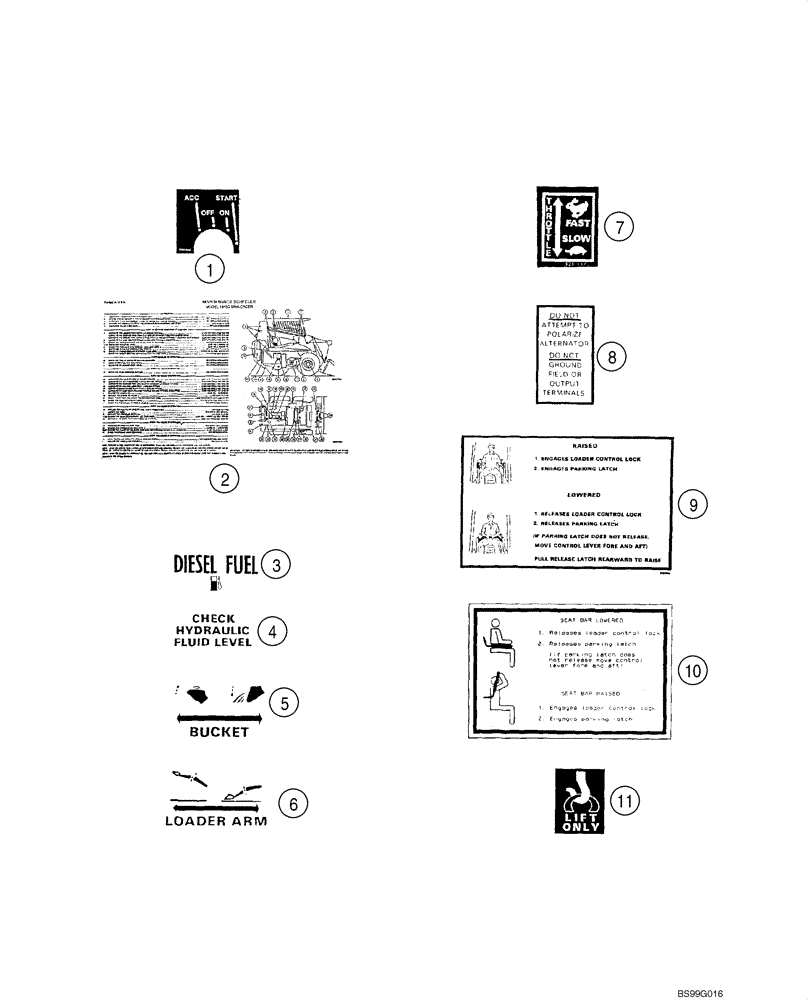

Запчасти Case IH 1845C (09-55) - DECALS - ITALIAN (09) - CHASSIS/ATTACHMENTS

1

E99635

DECAL

Ignition Switch Pattern

1шт.

2

175537A1

DECAL

Maintenance Schedule

1шт.

3

E21030

DECAL

Diesel Fuel; No Longer Available, Order 139879A1; See Fig 09-46, Ref 1

1шт.

4

E21031

DECAL

Check Hydraulic Fluids; No Longer Available, Order 251753A1

1шт.

4

251753A1

DECAL

Check Hydraulic Fluids; Not Illustrated; See Fig 09-46, Ref 2

1шт.

5

321-5850

DECAL

Bucket Control; No Longer Available, Order 256548A1; See Fig 09-46, Ref 3A

1шт.

6

321-5849

DECAL

Loader Arm Control; No Longer Available, Order 256547A1; See Fig 09-46, Ref 4A

1шт.

7

321-4470

DECAL

Throttle Speed; See Fig 09-46, Ref 5

1шт.

8

E21028

DECAL

Do Not Attempt

1шт.

9

E21036

DECAL

Models with Dual Seat Bars

1шт.

10

140421A1

DECAL

Models with Single Seat Bar

1шт.

11

E21032

DECAL

Lift Only; No Longer Available, Order 139729A1; See Fig 09-46, Ref 19

1шт.
