Запчасти Case IH 1845C (02-20) - CYLINDER HEAD, COVER - THERMOSTAT AND HOUSING, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE

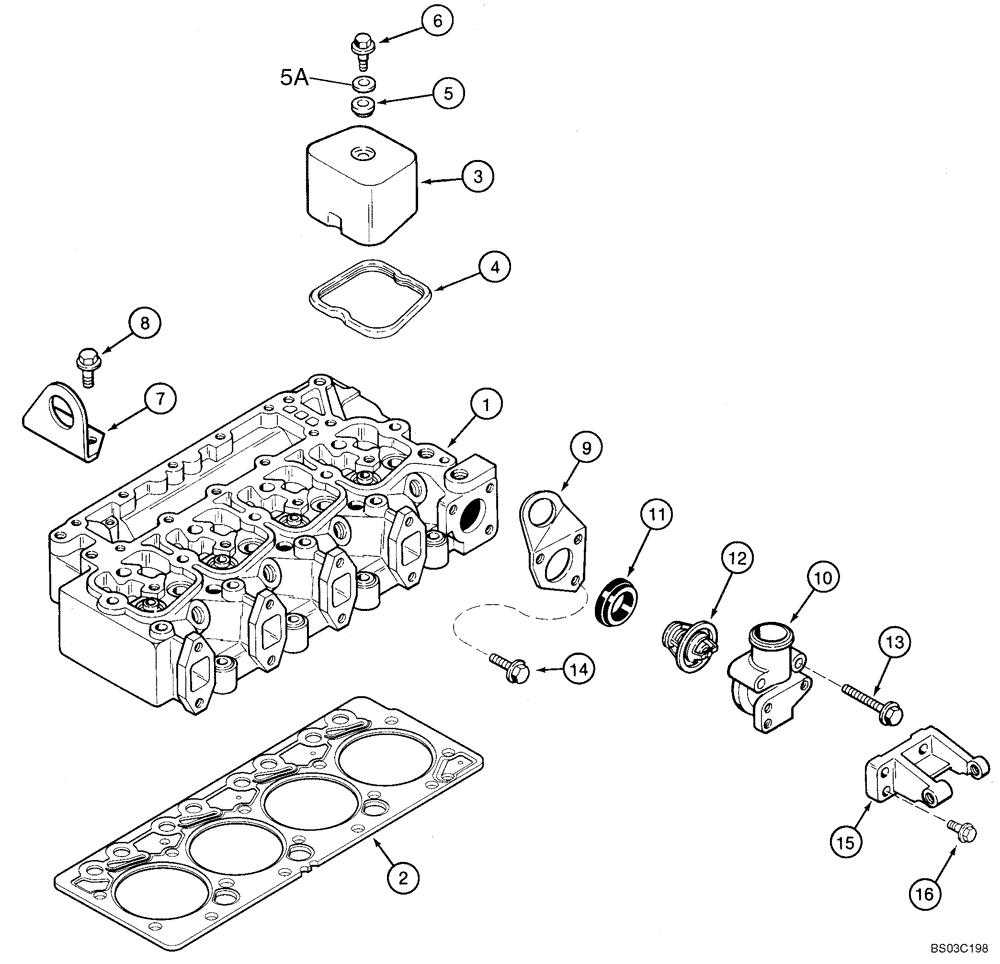

Схема запчастей Case IH 1845C - (02-20) - CYLINDER HEAD, COVER - THERMOSTAT AND HOUSING, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE
4
5a
12
1
13
16
7
10
8
9
6
5
11
14
2
15
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Cylinder Head; See Fig 02-23

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Cylinder Head

1шт.

2

J283336

GASKET

0.25 mm; Cylinder Head

1шт.

2

J283338

GASKET

0.50 mm; Cylinder Head

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Replaces J928406

4шт.

5a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

7

J908118

BRACKET

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

Replaces 854-12030

2шт.

9

J903757

BRACKET

1шт.

10

J285102

HOUSING

Replaces J914409

1шт.

A77736

THERMOSTAT

Thermostat; Incl. 11, 12

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

No Longer Used, Order J926972

2шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

M8 x 70 mm; Replaces 845-8070

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

No Longer Available, Order J287096

1шт.

15

J287096

SUPPORT

Incl. 838-5310

1шт.

838-5310

LOCK PIN,M3 x 10, Slotted

Used with Ref 15, J287096; Not Illustrated

2шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Used with Ref 15, J923387

3шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Used with Ref 15, J287096

3шт.

Выбрано товаров: 24
