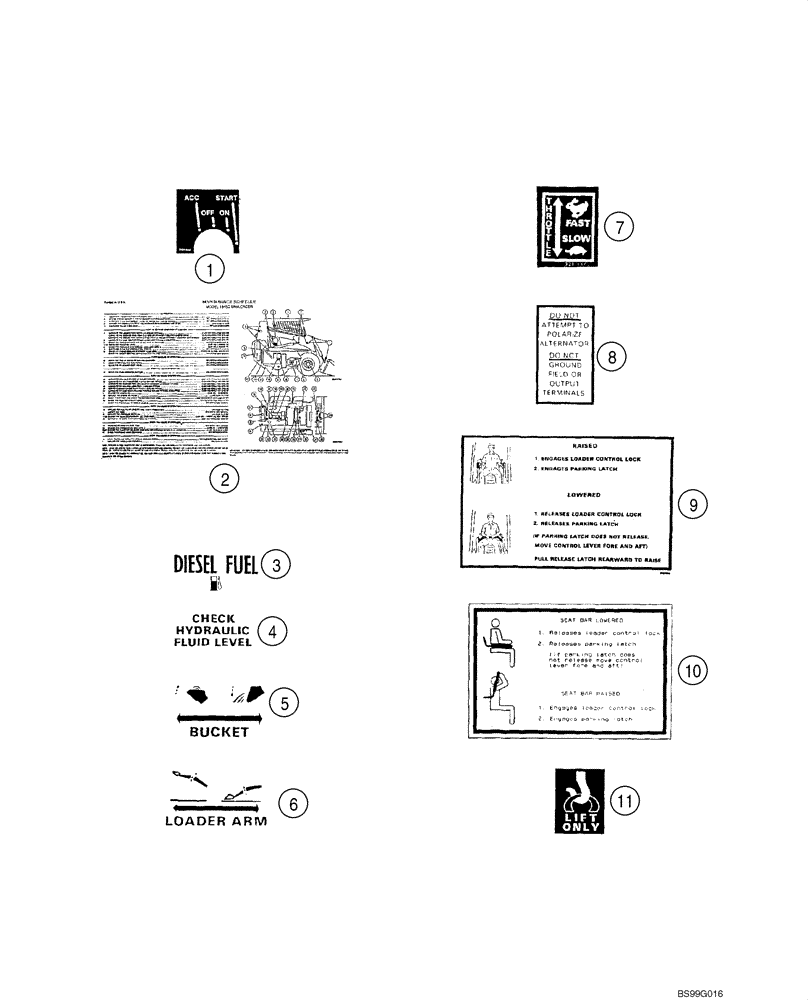

Запчасти Case IH 1845C (09-51) - DECALS - FRENCH (09) - CHASSIS/ATTACHMENTS

1

E99527

DECAL

Ignition Switch Pattern; No Longer Available, Order 140219A2; See Fig 09-46, Ref 8

1шт.

1

140219A2

DECAL

Ignition Switch Pattern; Not Illustrated; See Fig 09-46, Ref 8

1шт.

2

175535A1

DECAL

Maintenance Schedule

1шт.

3

106773A1

DECAL

Diesel Fuel; No Longer Available, Order 139879A1; See Fig 09-46, Ref 1

1шт.

4

321-2896

DECAL

Check Hydraulic Fluids; No Longer Available, Order 251753A1

1шт.

4

251753A1

DECAL

Check Hydraulic Fluids; Not Illustrated; See Fig 09-46, Ref 2

1шт.

5

321-5850

DECAL

Bucket Control; No Longer Available, Order 256548A1; See Fig 09-46, Ref 3A

1шт.

6

321-5849

DECAL

Loader Arm Control; No Longer Available, Order 256547A1; See Fig 09-46, Ref 4A

1шт.

7

321-4470

DECAL

Throttle Speed; See Fig 09-46, Ref 5

1шт.

8

321-2874

DECAL

Do Not Attempt; If used

1шт.

9

D136505

DECAL

Important Models with Dual Seat Bars

1шт.

10

133522A1

DECAL

Models with Single Seat Bar

1шт.

11

321-4319

DECAL

Lift Only; No Longer Available, Order 139729A1; See Fig 09-46, Ref 19

1шт.
