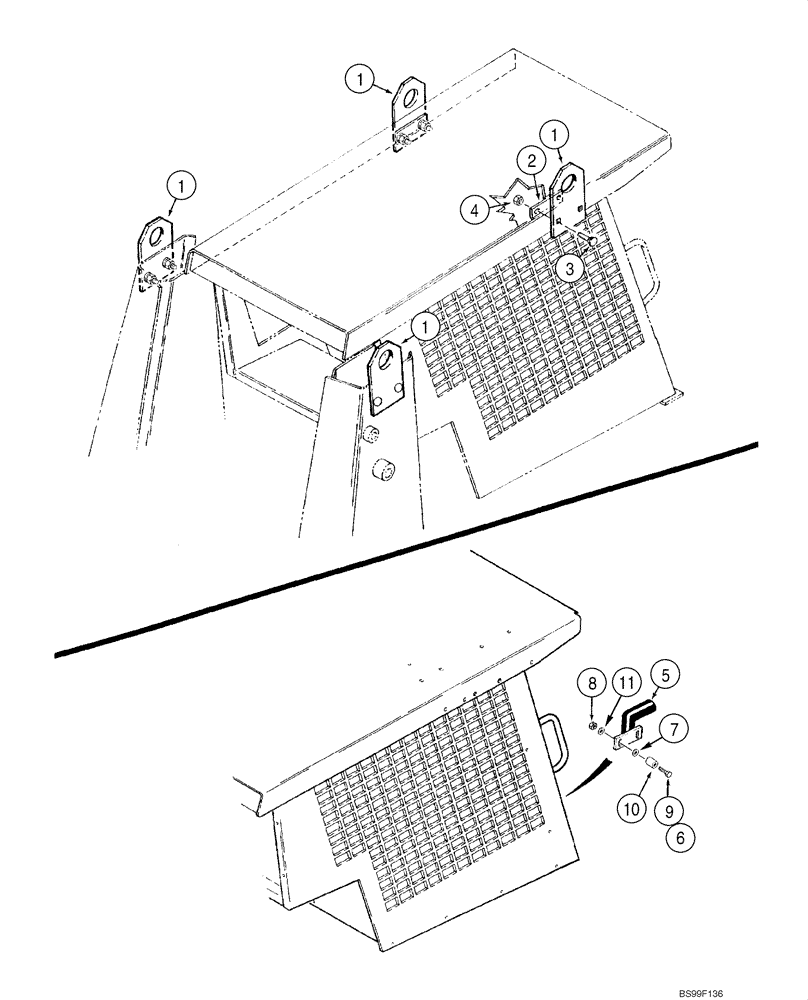

Запчасти Case IH 1845C (09-44) - LIFT BRACKETS (09) - CHASSIS/ATTACHMENTS

D102001

SET

Kit Service; Incl. 1 - 4

1шт.

1

D132975

LIFTING RING

Bracket

4шт.

2

D132976

BAR

2шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

8шт.

4

230-4218

LOCK NUT,1/2"-13, GA

8шт.

H674989

Kit Service; Incl. 1 - 4

1шт.

H439135

LIFTING RING

Bracket

4шт.

2

D132976

BAR

2шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

8шт.

4

230-4218

LOCK NUT,1/2"-13, GA

8шт.

H675123

Kit Service; Incl. 5 - 8; Models with Dual Seat Bars

1шт.

5

H674306

ARMREST

2шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

If Used

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

If Used

4шт.

10

H270777

SPACER

If Used

4шт.

11

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.
