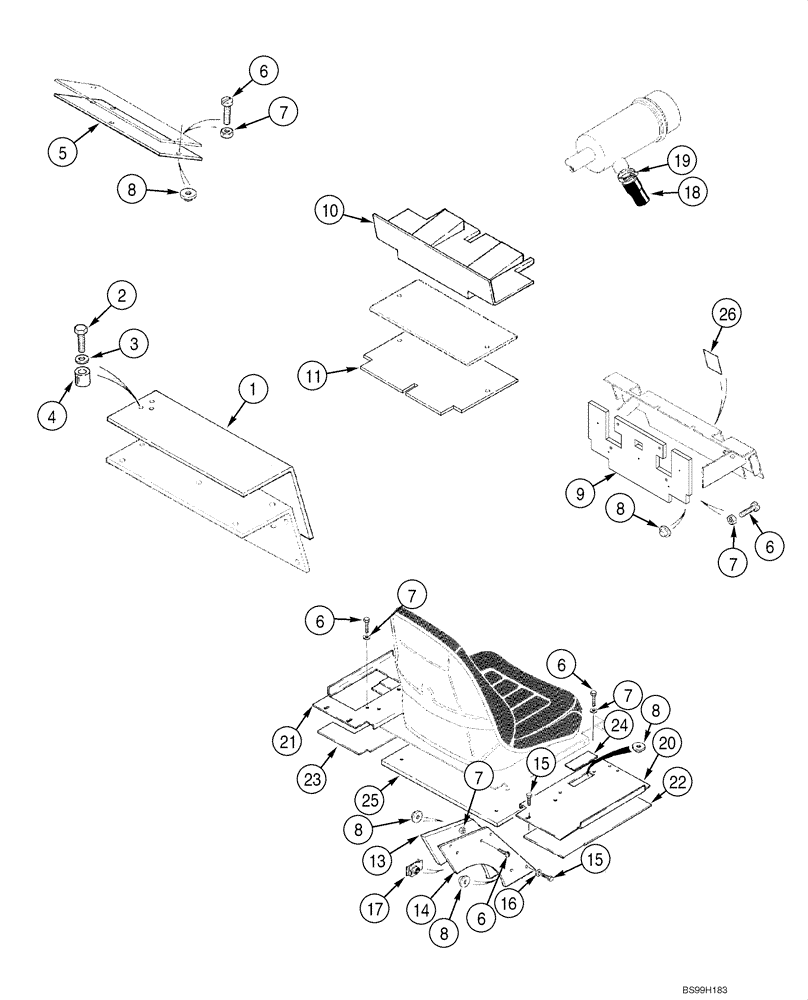

Запчасти Case IH 1845C (09-43) - NOISE KIT, 89DB EEC APPROVED (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

1

179828A2

LINING

Firewall

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

3

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

4

H439161

SPACER

3шт.

5

298332A1

PANEL

1шт.

6

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

18шт.

7

825-1405

NUT,M5, Cl 8

18шт.

8

E99641

CAP

18шт.

9

298330A1

PANEL

Heel Plate

1шт.

10

E99577

MAT

1шт.

11

298333A1

PANEL

1шт.

12

298632A1

PANEL

LH Side; Not Illustrated

1шт.

13

298335A1

PANEL

RH Side

1шт.

14

298214A1

PANEL

Door Closure Panel

2шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

16

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

17

H346650

NUT

6шт.

18

E21010

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID x 200.00 mm, SAE J200

1шт.

19

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

20

135562A3

LARGE PLATE

PLATE, LARGE RH

1шт.

21

135560A2

LARGE PLATE

PLATE, LARGE LH

1шт.

22

298328A1

PANEL

RH

1шт.

23

298329A1

PANEL

LH

1шт.

24

H439309

PLUG

2шт.

25

298331A1

PANEL

1шт.

26

178666A1

DECAL

1шт.

27

NSS

NOT SOLD SEPARAT

Window Assy; See Fig 09-36, Ref 7 - 10C; Not Illustrated

1шт.
