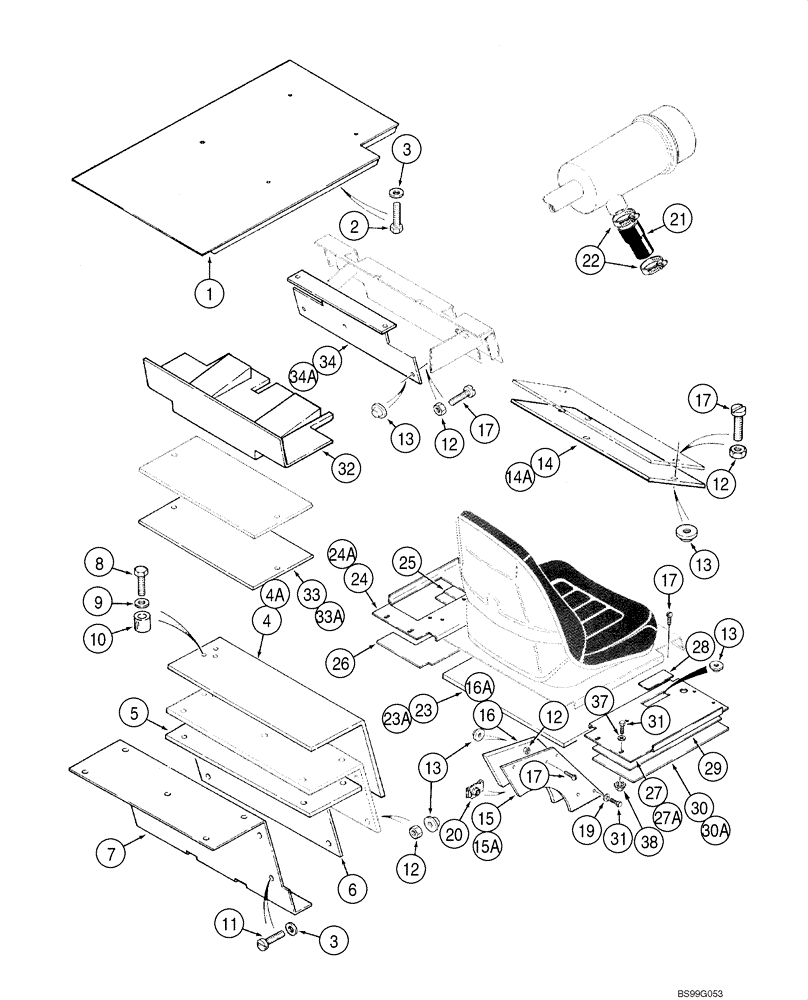

Запчасти Case IH 1845C (09-41) - NOISE KIT (89DB EEC APPROVED) (09) - CHASSIS/ATTACHMENTS

1

H438905

SLIDE

Headliner; ROPS

1шт.

1

179277A1

SLIDE

Headliner; ROPS; Gray

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

3

D136108

WASHER

12-14шт.

4

E99594

LINING

Firewall; Brown; Models with Dual Seat Bars

1шт.

4a

135564A2

LINING

Firewall; Brown; Models with Single Seat Bar

1шт.

4a

179828A2

LINING

Firewall; Gray; Models with Single Seat Bar; Replaces 179828A1

1шт.

5

E99612

INSULATOR

Firewall Top

1шт.

6

E99613

INSULATOR

Firewall Side

1шт.

7

108960A1

LINING

Engine Firewall

1шт.

8

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

9

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

10

H439161

SPACER

3шт.

11

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

1шт.

12

825-1405

NUT,M5, Cl 8

1шт.

13

E99641

CAP

1шт.

14

E99592

LINING

No Longer Used, Order 298332A1

1шт.

14a

298332A1

PANEL

2шт.

15

H439266

PANEL

Door Closure Panel; No Longer Used, Order 298214A1

2шт.

15a

298214A1

PANEL

Door Closure Panel

2шт.

16

E99630

LINING

Door Closure Panel; No Longer Used, Order 298335A1, 298632A1, Ref 16A, 16B

2шт.

16a

298335A1

PANEL

Door Closure Panel; RH

1шт.

16b

298632A1

PANEL

Door Closure Panel; LH; Not Illustrated

1шт.

17

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

18шт.

19

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

20

H346650

NUT

6шт.

21

E21010

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID x 200.00 mm, SAE J200

Air Filter

1шт.

22

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

23

E99602

LINING

Seat Plate; No Longer Used, Order 298331A1, Ref 23A

1шт.

23a

298331A1

PANEL

Seat Plate

1шт.

24

H439099

LARGE PLATE

PLATE, LARGE Closure; LH; Models with Dual Seat Bars

1шт.

24a

135560A2

LARGE PLATE

PLATE, LARGE Closure; LH; Models with Single Seat Bar; Replaces 135560A1

1шт.

25

E99605

INSULATOR

LH

1шт.

26

E99607

LINING

Seat Side; LH; No Longer Used, Order 298329A1

1шт.

26a

298329A1

PANEL

Seat Side; LH

1шт.

27

H439100

PLATE

Closure; RH; Models with Dual Seat Bars

1шт.

27a

135562A3

LARGE PLATE

PLATE, LARGE RH; Models with Single Seat Bar; Replaces 135562A1, 135562A2

1шт.

28

H439309

PLUG

2шт.

29

E99606

INSULATOR

RH

1шт.

30

H439268

LINING

Seat Side; RH; No Longer Used, Order 298328A1, Ref 30A

1шт.

30a

298328A1

PANEL

Seat Side; RH

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

32

E99577

MAT

Floor

1шт.

33

E99598

LINING

Floor Plate; No Longer Used, Order 298333A1, Ref 33A

1шт.

33a

298333A1

PANEL

Floor Plate

1шт.

34

H439267

LINING

Heel Plate; No Longer Used, Order 298330A1, Ref 34A

1шт.

34a

298330A1

PANEL

Heel Plate

1шт.

37

H426775

WASHER

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.
