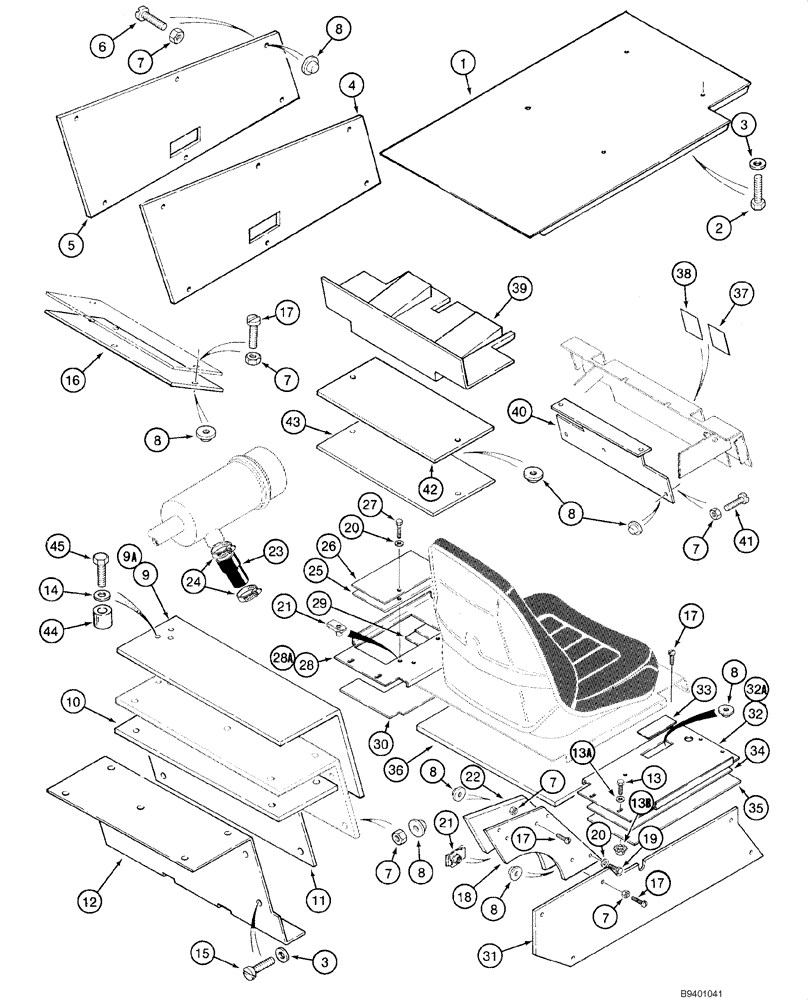

Запчасти Case IH 1845C (09-39) - NOISE KIT (85DBA EEC APPROVED) (09) - CHASSIS/ATTACHMENTS

1

H438905

SLIDE

Headliner; ROPS; Brown

1шт.

1

179277A2

PANEL

Headliner; ROPS; Gray; Replaces 179277A1

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

6-7шт.

3

D136108

WASHER

8-14шт.

4

E99621

PAD

RH; Models with Dual Seat Bars; Brown

1шт.

4

138231A1

PAD

RH; Models with Single Seat Bar; Brown

1шт.

4

184965A1

PADDING

RH; Models with Single Seat Bar; Gray

1шт.

5

E99620

PAD

LH; Models with Dual Seat Bars; Brown

1шт.

5

138233A1

PAD

LH; Models with Single Seat Bar; Brown

1шт.

5

184963A1

PADDING

LH; Models with Single Seat Bar; Gray

1шт.

6

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

12шт.

7

825-1405

NUT,M5, Cl 8

48-50шт.

8

E99641

CAP

48-50шт.

9

E99594

LINING

Firewall; Models with Dual Seat Bars; Brown

1шт.

9a

135564A2

LINING

Firewall; Models with Single Seat Bar; Brown

1шт.

9a

179828A1

LINING

Firewall; Models with Single Seat Bar; Gray

1шт.

10

E99612

INSULATOR

Firewall Top

1шт.

11

E99613

INSULATOR

Engine Firewall

1шт.

12

108960A1

LINING

Engine Firewall

1шт.

13

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

13a

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

13b

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

15

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

10шт.

16

E99592

LINING

1шт.

17

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

23шт.

18

H439266

PANEL

Door Closure Panel

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

20

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

8шт.

21

H346650

NUT

8шт.

22

E99630

LINING

Door Closure Panel

2шт.

23

E21010

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID x 200.00 mm, SAE J200

Air Filter

1шт.

24

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

25

E21059

INSULATOR

LH

1шт.

26

H439233

LARGE PLATE

PLATE, LARGE LH

1шт.

27

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

28

H439099

LARGE PLATE

PLATE, LARGE LH; Models with Dual Seat Bars

1шт.

28a

135560A1

PLATE

LH; Models with Single Seat Bar; Not Illustrated

1шт.

29

E99605

INSULATOR

LH

1шт.

30

138305A1

PAD

LH; Replaces E99607

1шт.

31

E99601

LINING

2шт.

32

H439100

PLATE

RH; Models with Dual Seat Bars

1шт.

32a

135562A1

PLATE

RH; Models with Single Seat Bar

1шт.

33

H439309

PLUG

2шт.

34

E99606

INSULATOR

RH

1шт.

35

138308A1

PAD

RH; Replaces H439268

1шт.

45

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

36

E99602

LINING

1шт.

37

E21041

DECAL

1шт.

38

E21043

DECAL

1шт.

39

E99577

MAT

1шт.

40

H439267

LINING

1шт.

41

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

5шт.

42

E99624

LINING

Upper

1шт.

43

E99598

LINING

Lower

1шт.

44

H439161

SPACER

3шт.
