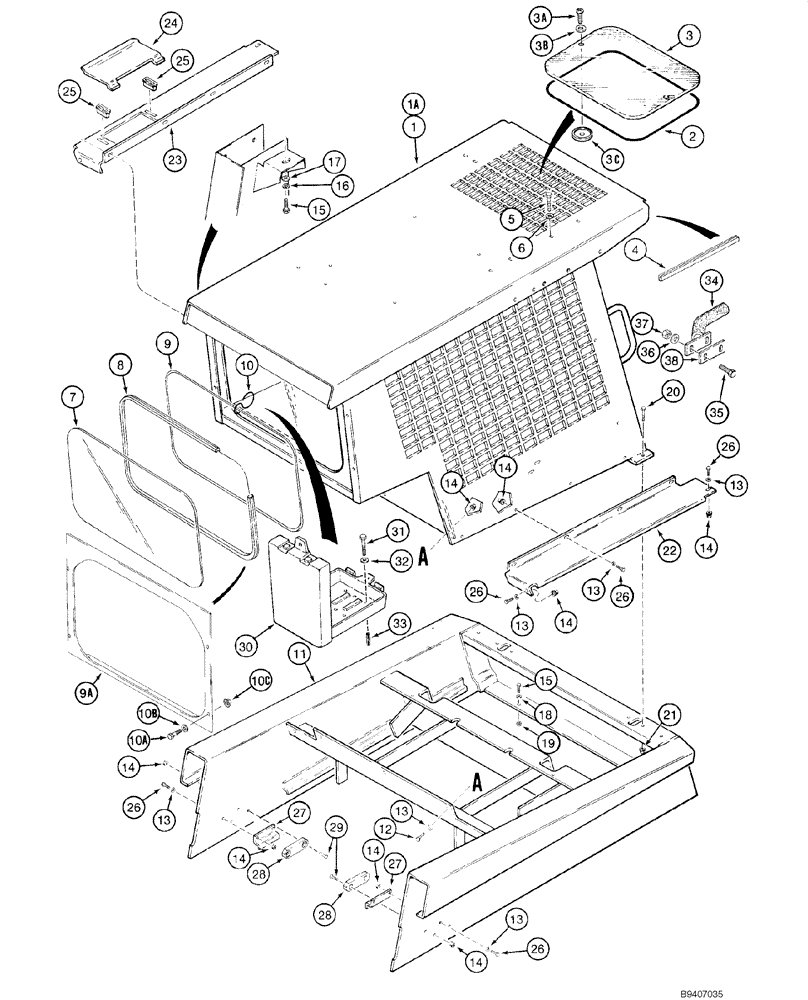

Запчасти Case IH 1845C (09-36) - FOPS/ROPS AND ROPS - PUNCHED (EUROPE) (09) - CHASSIS/ATTACHMENTS

1

135221A1

CAB

Punched; Machinery Item

1шт.

1a

135621A1

CAB

Punched; Machinery Item; Replaces H674957; Not Illustrated

1шт.

138007A1

Kit; ROPS; Brown; Punched; Incl. 135221A1, H439254, 144266A1; Also Incl. Decals; No Longer Available, Order Components

1шт.

189627A1

Kit; ROPS; Gray; Punched; Incl. 135221A1, R46464, H439254, 144266A1; Also Incl. Decals; No Longer Available, Order Components

1шт.

138010A1

Kit; FOPS/ROPS; Brown; Punched; Incl. 135621A1, R46464, H439254, 144266A1; Also Incl. Decals; No Longer Available, Order Components

1шт.

189629A1

Kit; FOPS/ROPS; Gray; Punched; Incl. 135621A1, R46464, H439254, 144266A1; Also Incl. Decals; No Longer Available, Order Components

1шт.

108171A1

Kit; Conversion; FOPS; No Longer Available, Order Components

1шт.

2

382086A1

SEALING STRIP

Replaces H439254

1шт.

3

144266A1

GLASS

1шт.

3a

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

3b

103777A1

SEALING WASHER

2шт.

3c

E99641

CAP

2шт.

3d

228139A1

BAND

Not Illustrated

1шт.

4

D60180

STRIP

368 mm (14-1/2 in); Cut from F42827

2шт.

5

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Replaces 413-436

1шт.

6

103777A1

SEALING WASHER

1шт.

117737A1

WINDOW

Assy; Incl. 7 - 10C

1шт.

7

107143A1

GLASS

Screen

1шт.

8

RK692078

DOOR SEAL

Replaces E99025, E20930

1шт.

9

Z8560231

SEAL,2243mm L

Replaces E99026

1шт.

9a

117736A1

PANEL

1шт.

10

107996A1

RING

1шт.

10a

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

10b

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

7шт.

10c

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

11

H673530

FRAME

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

13

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

19шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

17

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

19

232-4118

NUT,1/2"-13, GC

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

21

231-5146

FLANGE NUT,3/8"-16

4шт.

22

D127006

PANEL

RH; No Longer Available, Order 143164A1

1шт.

22a

143164A1

PANEL

RH; Replaces D127006

1шт.

23

H437936

PANEL

LH

1шт.

24

D130135

COVER

1шт.

25

D127335

CATCH

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

27

D125060

BRACKET

2шт.

28

H438147

SPACER

2шт.

29

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

31

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

30

R46464

CASE

Manual

1шт.

30a

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Not Illustrated

1шт.

32

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

33

H439161

SPACER

3шт.

H674454

SET

Incl. 34 - 38; Models with Dual Seat Bars

1шт.

34

H674306

ARMREST

2шт.

35

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

36

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

38

H437790

LARGE PLATE

PLATE, LARGE

2шт.

39

107037A1

SEAL

Not Illustrated; Replaces H426775

2шт.
