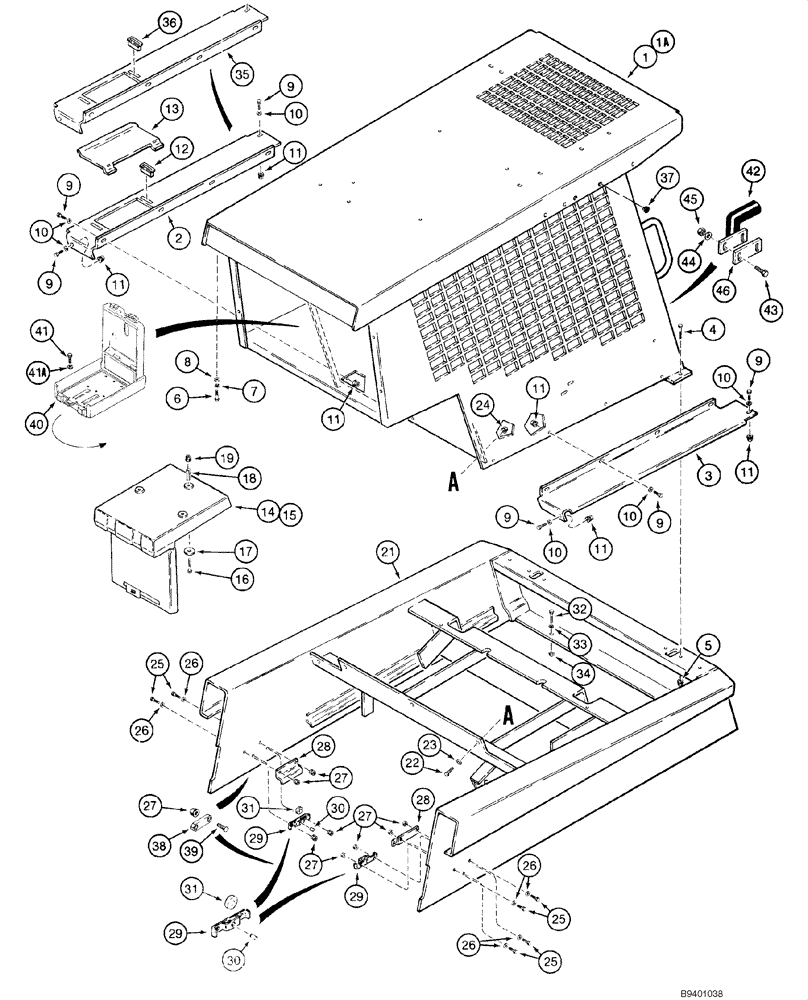

Запчасти Case IH 1845C (09-34) - CANOPY, ROPS - FRAME AND PANELS (NORTH AMERICA), JAF0040228 - (09) - CHASSIS/ATTACHMENTS

1

H673116

CAB

Models with Dual Seat Bars; No Longer Available, Order 137959A1 or 189626A1

1шт.

1a

135221A1

CAB

Models with Single Seat Bar

1шт.

2

D127400

PANEL

LH; No Longer Available, Order (1) H437936, (2) D127335

1шт.

3

143164A1

PANEL

RH; Replaces D127006

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

10

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

12шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

137959A1

Kit Service; ROPS; Brown; Incl. 135221A1, Ref 1A; Incl. Decals; No Longer Available, Order Components

1шт.

189626A1

CAB

Kit Service; ROPS; Gray; Incl. 135221A1, Ref 1A; Incl. Decals; No Longer Available, Order Components

1шт.

12

NSS

NOT SOLD SEPARAT

Catch; Magnetic; Used with D127400

2шт.

13

D130135

COVER

LH

1шт.

14

R38893

CASE

Operators Manual; Incl. 15; - JAF0080862

1шт.

15

N7120

LATCH

1шт.

16

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

17

D136108

WASHER

1шт.

18

D136111

SPACER

1шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

21

H673530

FRAME

1шт.

21a

297886A1

FRAME

Models with Emissions Certified Engine; Not Illustrated

1шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

23

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4-8шт.

26

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

4-8шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4-8шт.

28

D125060

BRACKET

Fender

2шт.

D125056

BRACKET

Roller; Incl. 29 - 31; No Longer Available, Order H438147, Ref 38

2шт.

29

NSS

NOT SOLD SEPARAT

Bracket

1шт.

30

D125014

PIN

1шт.

31

D124143

ROLLER

Rear

1шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

34

232-4118

NUT,1/2"-13, GC

2шт.

35

H437936

PANEL

LH

1шт.

36

D127335

CATCH

Used with H437936, Ref 35

2шт.

37

353-405

PLUG,Dome, .562" hole, Nylon

Models without D102001 Lifting Bracket; North American Models

2шт.

38

H438147

SPACER

2шт.

39

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

40

R46464

CASE

Manual; JAF0080863 -

1шт.

41

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

41a

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), Models with Dual Seat Bars

3шт.

41b

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Not Illustrated

1шт.

H674454

SET

Incl. 42 - 46

1шт.

42

H674306

ARMREST

2шт.

43

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

44

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

46

H437790

LARGE PLATE

PLATE, LARGE

2шт.

47

107037A1

SEAL

Not Illustrated

2шт.
