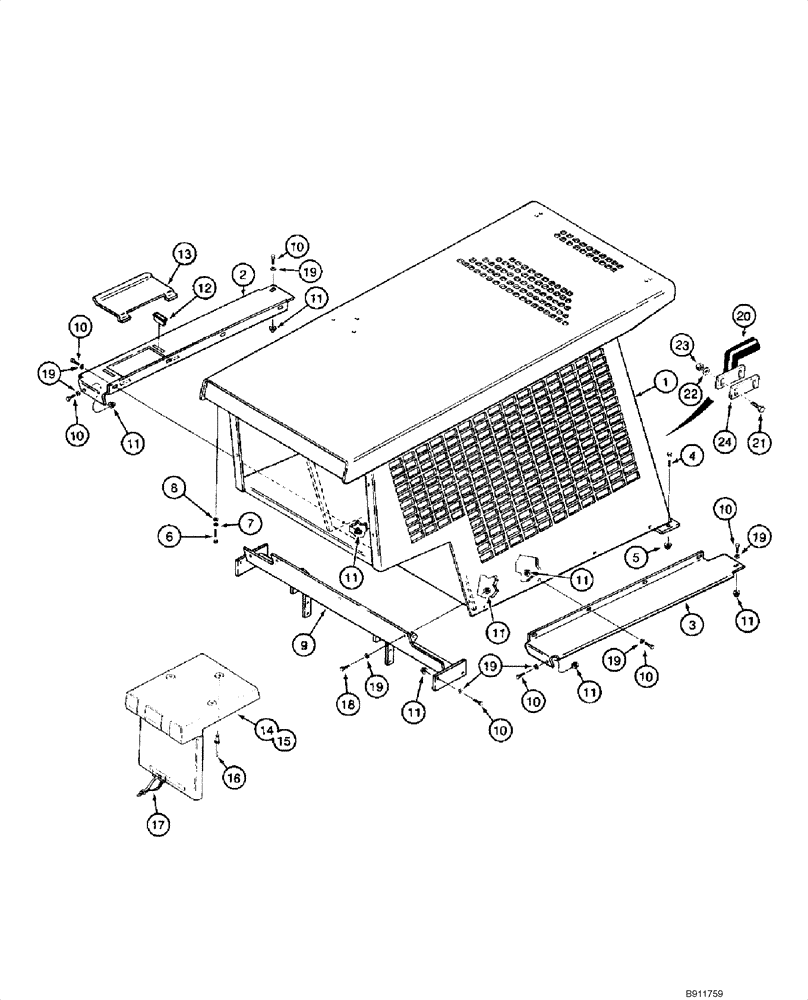

Запчасти Case IH 1845C (09-33) - CANOPY, ROPS - FRAME AND PANELS (NORTH AMERICA), - JAF0040227 (09) - CHASSIS/ATTACHMENTS

1

D137036

SET

Frame; Incl. Decals; See Figs 09-45 - 09-48

1шт.

2

H437936

PANEL

LH

1шт.

3

D127006

PANEL

RH

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32)

2шт.

9

D127656

SUPPORT

Seat

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

12

NSS

NOT SOLD SEPARAT

Catch; Magnetic

2шт.

13

D130135

COVER

LH

1шт.

14

R38893

CASE

Operators Manual; Incl. 15

1шт.

15

N7120

LATCH

1шт.

16

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

19

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

19шт.

H674454

SET

Incl. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

Armrest

2шт.

21

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

24

H437790

LARGE PLATE

PLATE, LARGE

2шт.
