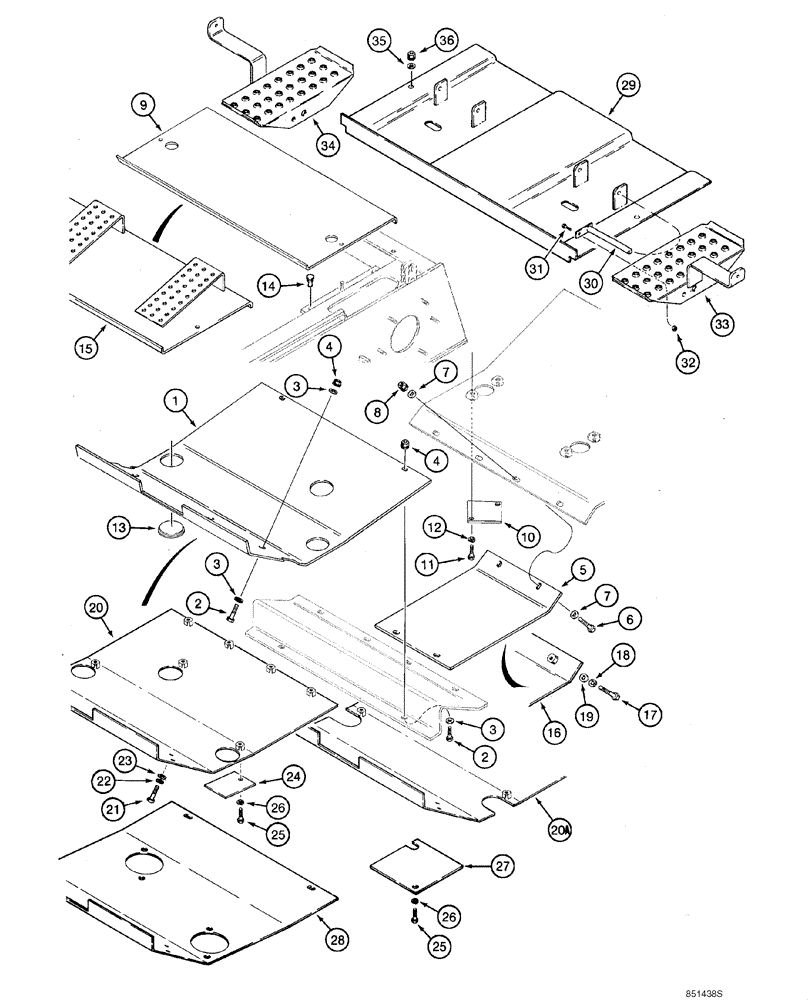

Запчасти Case IH 1845C (09-32) - PLATES, FLOOR - GUARDS, DRIVE LINE (09) - CHASSIS/ATTACHMENTS

1

D125027

GUARD

Rear; No Longer Used; Order H673211, Ref 20A

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used with D125027, Ref 1

5шт.

3

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32); Used with D125027, Ref 1

8шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Used with D125027, Ref 1

5шт.

5

D125025

GUARD

300 mm (12 in); Engine; No Longer Available, Order D136121, Ref 16

1шт.

5

D125026

GUARD

530 mm (29 in); Engine; No Longer Available, Order D136120, Ref 16

1шт.

6

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used with Ref 5

4шт.

7

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32); Used with Ref 5

8шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Used with Ref 5

4шт.

9

D131593

PLATE

Front; Models with Hand Operated Loader Controls; No Longer Available, Order H673098, Ref 15

1шт.

10

H435050

PLATE

Access

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

3-4шт.

13

D93716

PLUG,73.mm ID x 88.9mm OD

Used with D125027, Ref 1

2шт.

14

A161780

BUMPER

Rubber; If Used

4шт.

15

H673098

PLATE

Front; Models with Hand Operated Loader Controls

1шт.

16

D136121

PLATE

300 mm (12 in); Engine; If used

1шт.

16

D136120

PLATE

736 mm (29 in); Engine; If used

1шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used with Ref 16

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

Used with Ref 16

4шт.

19

H274894

WASHER

Used with Ref 16

4шт.

20

D136122

PAN

Rear; - JAF0017264; No Longer Available, Order H673211, Ref 20A

1шт.

20a

H673211

PAN

Rear; JAF0017265 - JAF0041824

1шт.

Incl Cage P/N 70996 and Nuts P/N 129-857

1шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used with D136122, Ref 20; H673211, Ref 20A

5-7шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

Used with D136122, Ref 20; H673211, Ref 20A

7шт.

23

H274894

WASHER

Used with D136122, Ref 20; H673211, Ref 20A

5-7шт.

24

D138561

PLATE

Used with D136122, Ref 20; H673211, Ref 20A

3шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Used with D138561, Ref 24; H436914, Ref 2

3-8шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

Used with D138561, Ref 24; H436914, Ref 27

3-8шт.

27

H436914

LARGE PLATE

PLATE, LARGE Used with H673841, Ref 28

4шт.

28

H673841

LARGE PLATE

PLATE, LARGE 5 mm; Rear; JAF0041824 -

1шт.

29

H673917

LARGE PLATE

PLATE, LARGE Front; Models with Foot Operated Loader Controls

1шт.

30

H673771

PIN,12.7mm OD x 140mm L

2шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

33

H673934

PEDAL

RH

1шт.

34

H673933

PEDAL

LH

1шт.

35

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

36

231-5146

FLANGE NUT,3/8"-16

2шт.

37

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

Used with D136122, Ref 20; Not Illustrated

1шт.

38

D35240

CAGE

Used with D136122, Ref 20; Not Illustrated

1шт.
