Запчасти Case IH 1845C (02-17) - OIL PUMP, PAN - HEATER, 4-390 ENGINE (02) - ENGINE

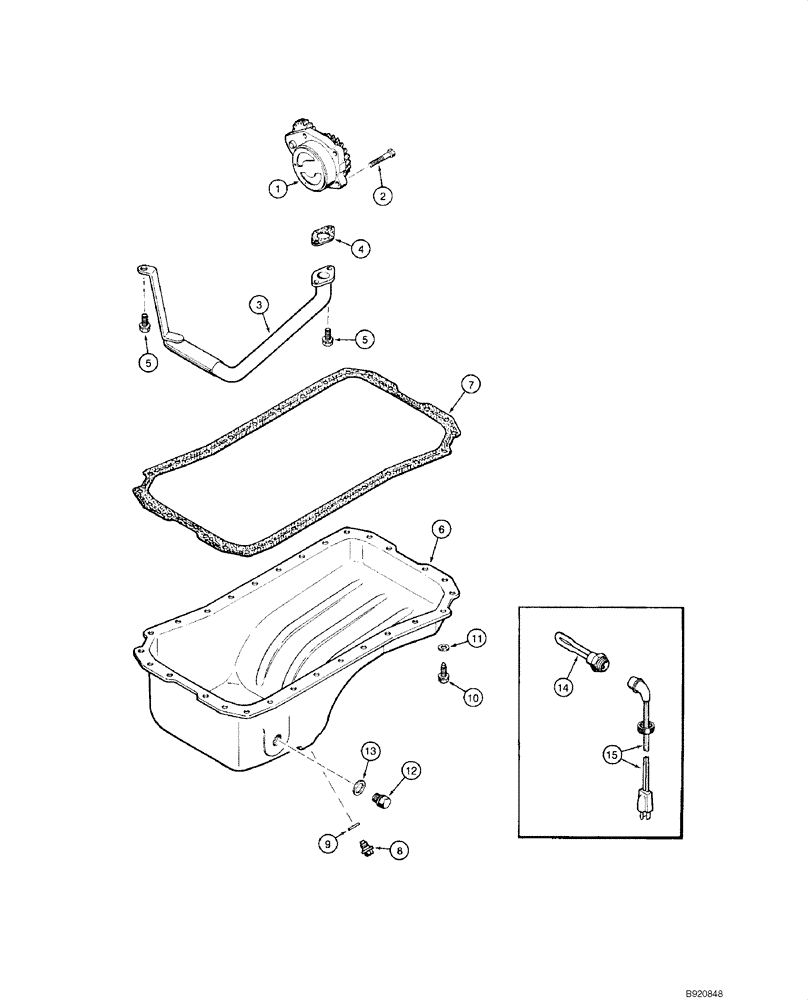

Схема запчастей Case IH 1845C - (02-17) - OIL PUMP, PAN - HEATER, 4-390 ENGINE (02) - ENGINE
8
11
5
6
12
4
15
13
7
14
5
9
10
1
3
2

Артикул

Название

Примечание

Количество

1

J914005

PUMP, ENGINE OIL

Engine No. - 44511072; No Longer Available, Order J926202

1шт.

JR914005

PUMP

Remanufactured; North America Only; Engine No. - 44511072

1шт.

JC914005

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number; Engine No. - 44511073

1шт.

1

J926202

PUMP, ENGINE OIL

Engine No. 44511073 - ; Replaces J918211, J924719; No Longer Available, Order J937027

1шт.

JR926202

PUMP

Remanufactured; North America Only; Engine No. 44511073 - ; Replaces JR918211, JR924719

1шт.

1

J937027

PUMP, ENGINE OIL

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number; Engine No. 44511073 - ; Replaces JC918211, JC924719

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J905206

TUBE,1" OD

1шт.

4

J914383

GASKET

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Replaces J900629

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

J924147

PLUG,M18 x 1.5

M18; Replaces J900215, J911638

1шт.

9

J920773

SEALING WASHER

Replaces J900216

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25; Replaces J907860

28шт.

11

J907537

SPRING WASHER

If used

28шт.

12

J924148

PLUG,M22 x 1.5

M22; Replaces J904386

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Incl. 4, 7, 9

1шт.

A77490

KIT

120V; Incl. 14, 15; Also Order J902425, Ref 13

1шт.

14

NSS

NOT SOLD SEPARAT

Element, 120V

1шт.

15

J905113

CABLE

1829 mm (72 in); No Longer Available, Order 196466A1

1шт.

15

196466A1

ELECTRIC CABLE

1829 mm (72 in); Replaces J905113

1шт.

Выбрано товаров: 25
