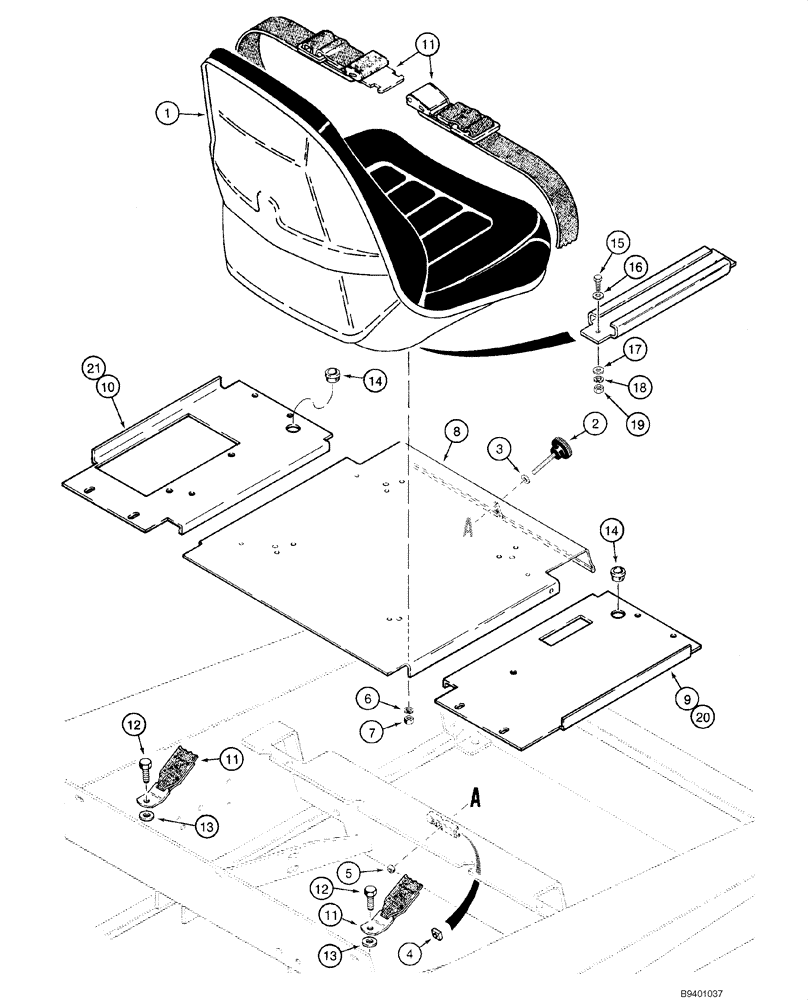

Запчасти Case IH 1845C (09-28) - SEAT, MOUNTING - NON-SUSPENSION AND SUSPENSION (EUROPE) (09) - CHASSIS/ATTACHMENTS

1

D124515

SEAT ASSY.

Brown; See Fig 09-29

1шт.

1

E99306

SEAT ASSY.

Brown; Deluxe; Component Parts Not Serviced Separately; Incl. Slides and Hardware; For Service Order E84392

1шт.

1

179330A1

SEAT

Black; See Fig 09-29

1шт.

2

D133068

KNOB

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

4

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

5

232-4116

NUT,3/8"-16, GC

1шт.

6

492-11031

LOCK WASHER,5/16"

Incl. with Standard Seat

4шт.

7

425-105

NUT,5/16"-18, G5

Incl. with Standard Seat

4шт.

8

297883A2

LARGE PLATE

PLATE, LARGE Replaces H435514

1шт.

9

H439100

PLATE

RH; Models with Dual Seat Bars

1шт.

10

H439099

LARGE PLATE

PLATE, LARGE LH; Models with Dual Seat Bars

1шт.

11

D133868

SAFETY BELT ,2.00" W

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

13

495-21069

WASHER,5/8"

(11/16 x 1-3/4 x 9/64)

2шт.

14

F64486

GROMMET

3/4 ID; Used with H439100, Ref 9, H439099, Ref 10

2шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

18

492-11031

LOCK WASHER,5/16"

4шт.

19

425-105

NUT,5/16"-18, G5

4шт.

20

135562A3

LARGE PLATE

PLATE, LARGE RH; Models with Single Seat Bar; Replaces 135562A1, 135562A2

1шт.

21

135560A1

PLATE

LH; Models with Single Seat Bar

1шт.
