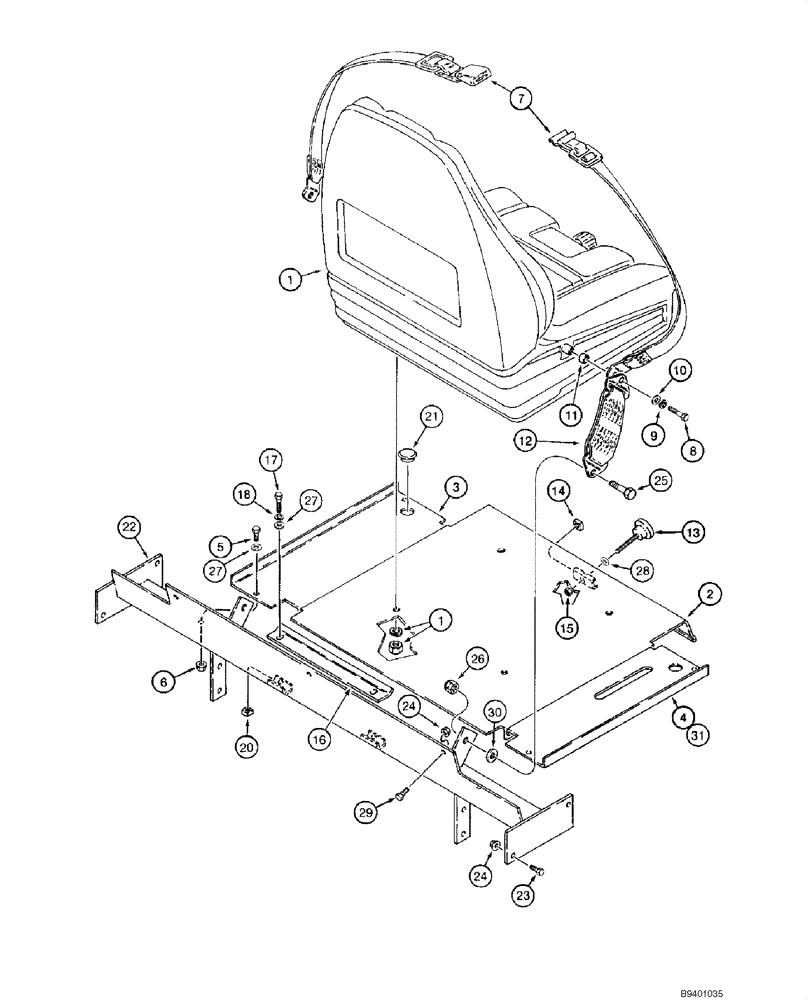

Запчасти Case IH 1845C (09-25) - SEAT, MOUNTING - SUSPENSION (NORTH AMERICA), - JAF0040227 (09) - CHASSIS/ATTACHMENTS

1

D129790

SEAT

Deluxe; Brown Vinyl; See Figs 09-30, 09-30A

1шт.

1

178764A1

SEAT

Deluxe; Gray Vinyl; See Figs 09-30, 09-30A

1шт.

2

297883A2

LARGE PLATE

PLATE, LARGE Replaces H435514

1шт.

3

D131900

PANEL

LH

1шт.

D137009

COVER

Incl. 4, 4A; RH; No Longer Available, Order H437059, Ref, 321-4470, Ref 4A

1шт.

4

D131901

PANEL

RH; No Longer Available, Order H437059, Ref 31

1шт.

4a

321-4470

DECAL

Slow to Fast; Not Illustrated; See Fig 09-48

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

H438265

SAFETY BELT

Replaces H435663

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

11

D34242

SPACER

2шт.

12

D127382

SAFETY BELT

238 mm (9-3/8 in)

2шт.

13

D133068

KNOB

1шт.

14

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

15

232-4116

NUT,3/8"-16, GC

1шт.

16

D72913

CLIP

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

492-11031

LOCK WASHER,5/16"

2шт.

20

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

21

F64486

GROMMET

3/4 ID

2шт.

22

D127656

SUPPORT

1шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

26

232-4118

NUT,1/2"-13, GC

2шт.

27

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

6шт.

28

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

30

495-21069

WASHER,5/8"

(11/16 x 1-3/4 x 9/64)

2шт.

31

H437059

COVER

RH; Replaces D131901

1шт.
