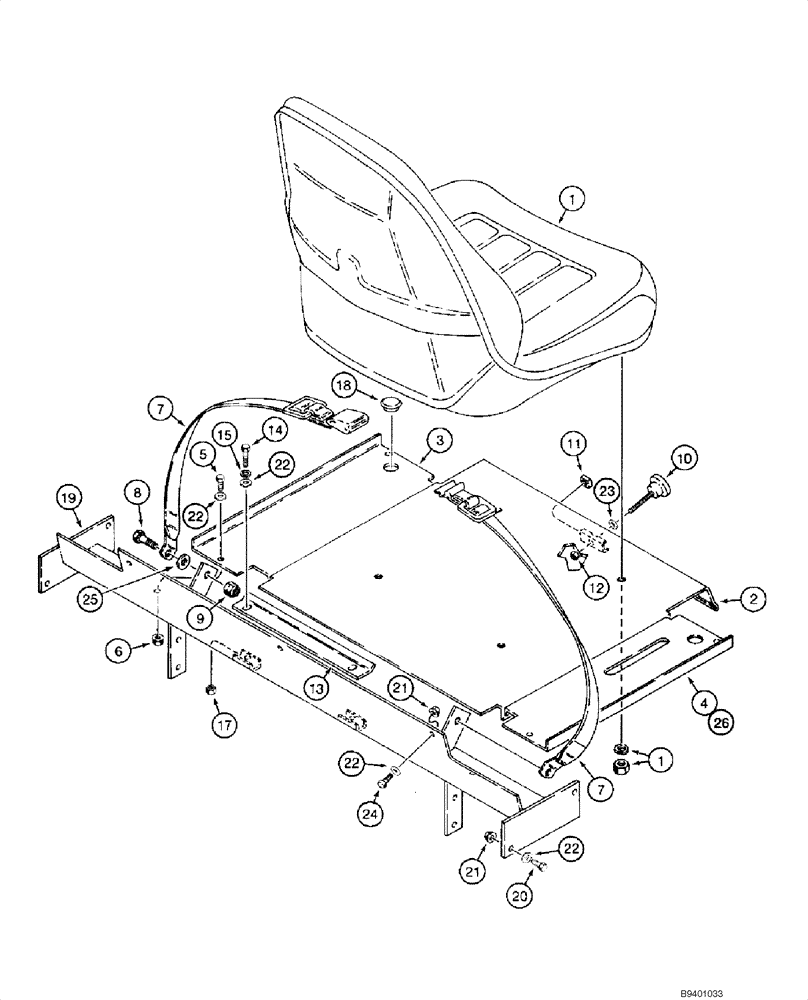

Запчасти Case IH 1845C (09-22) - SEAT, MOUNTING - NON-SUSPENSION (NORTH AMERICA), - JAF0040227 (09) - CHASSIS/ATTACHMENTS

1

D124515

SEAT ASSY.

See Fig 09-29

1шт.

2

297883A2

LARGE PLATE

PLATE, LARGE Replaces H435514

1шт.

3

D131900

PANEL

LH

1шт.

D137009

COVER

Incl. 4, 4A; RH; No Longer Available, Order H437059, Ref 18; 321-4470, Ref 9A

1шт.

4

D131901

PANEL

RH; No Longer Available, Order H437059, Ref 18; 321-4470, Ref 9A

1шт.

4a

321-4470

DECAL

Slow to Fast; Not Illustrated; See Fig 09-48

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

D133868

SAFETY BELT ,2.00" W

If used

1шт.

7

H438265

SAFETY BELT

If used

1шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

9

232-4118

NUT,1/2"-13, GC

2шт.

10

D133068

KNOB

1шт.

11

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

12

232-4116

NUT,3/8"-16, GC

1шт.

13

D72913

CLIP

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

492-11031

LOCK WASHER,5/16"

2шт.

17

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

18

F64486

GROMMET

3/4 ID

2шт.

19

D127656

SUPPORT

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

22

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

13шт.

23

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

25

495-21069

WASHER,5/8"

(11/16 x 1-3/4 x 9/64); Used with H438265, Ref 7

2шт.

26

H437059

COVER

Replaces D131901

1шт.
