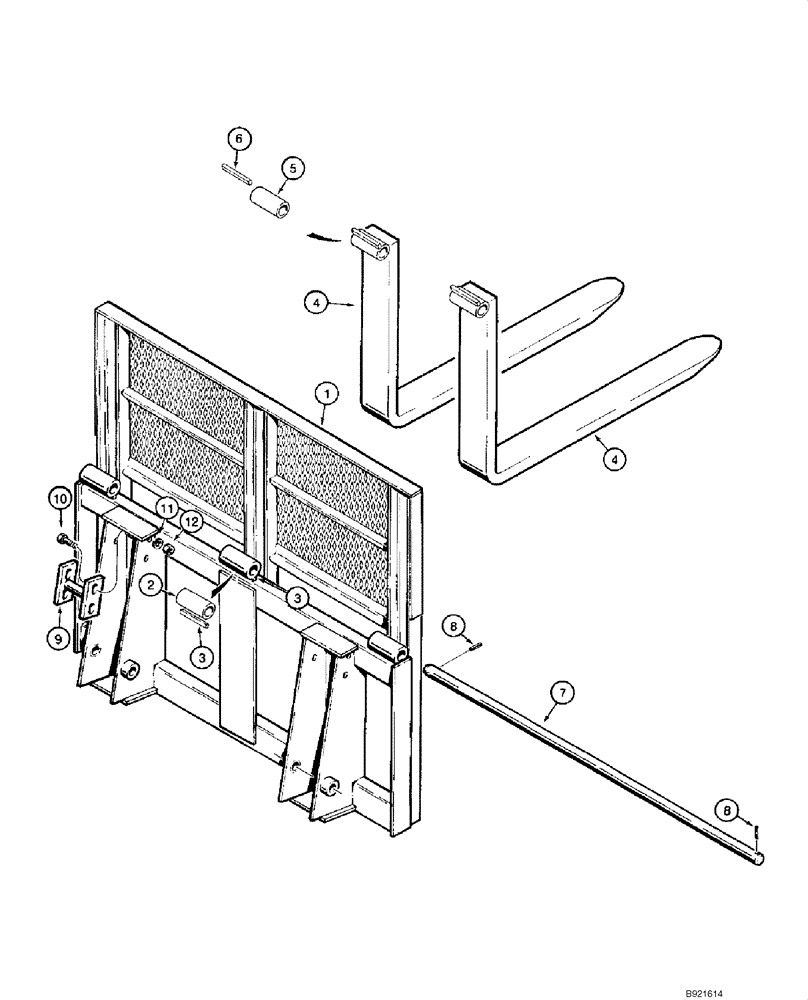

Запчасти Case IH 1845C (09-19) - PALLET FORK (PINNED COUPLER) (09) - CHASSIS/ATTACHMENTS

1

H673630

FRAME

Frame, 42 in; Incl. 2, 3; Order from Machinery Price List

1шт.

2

T41518

BUSHING

3шт.

3

T40765

SPACER

3шт.

4

D77683

FORK

36 in; No Longer Available, Order H673833

2шт.

4

H673833

FORK

42 in; Incl. 5, 6; Replaces D77683

2шт.

5

T41518

BUSHING

1шт.

6

H438017

STOP

1шт.

7

T41522

ROD

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

2шт.

9

D71787

PIN

2шт.

10

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

8шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

16.7 x 33.3 x 3.4; Replaces H426809

8шт.

12

425-1010

NUT,5/8"-11, G5

8шт.
