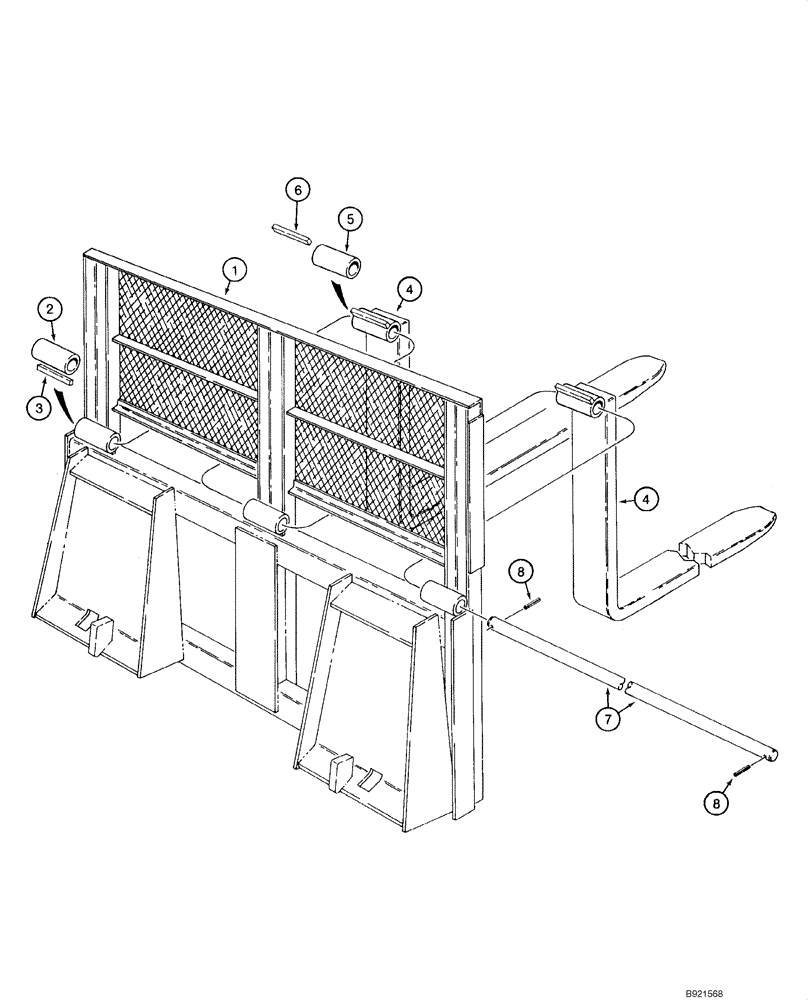

Запчасти Case IH 1845C (09-18) - PALLET FORK (CASE COUPLER, HYDRAULIC COUPLING) (09) - CHASSIS/ATTACHMENTS

1

H673629

FRAME

42 in; Incl. 2, 3; Order from Machinery Price List

1шт.

2

T41518

BUSHING

3шт.

3

T40765

SPACER

3шт.

4

D77683

FORK

36 in; No Longer Available, Order H673833

2шт.

4

H673833

FORK

42 in; Incl. 5, 6; Replaces D77683

2шт.

5

T41518

BUSHING

1шт.

6

H438017

STOP

1шт.

7

T41522

ROD

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

2шт.
