(09-17A) - BUCKETS, LOADER - 2083 MM (82 IN) WIDE BUCKET

Запчасти Case IH 1845C (09-17A) - BUCKETS, LOADER - 2083 MM (82 IN) WIDE BUCKET (09) - CHASSIS/ATTACHMENTS

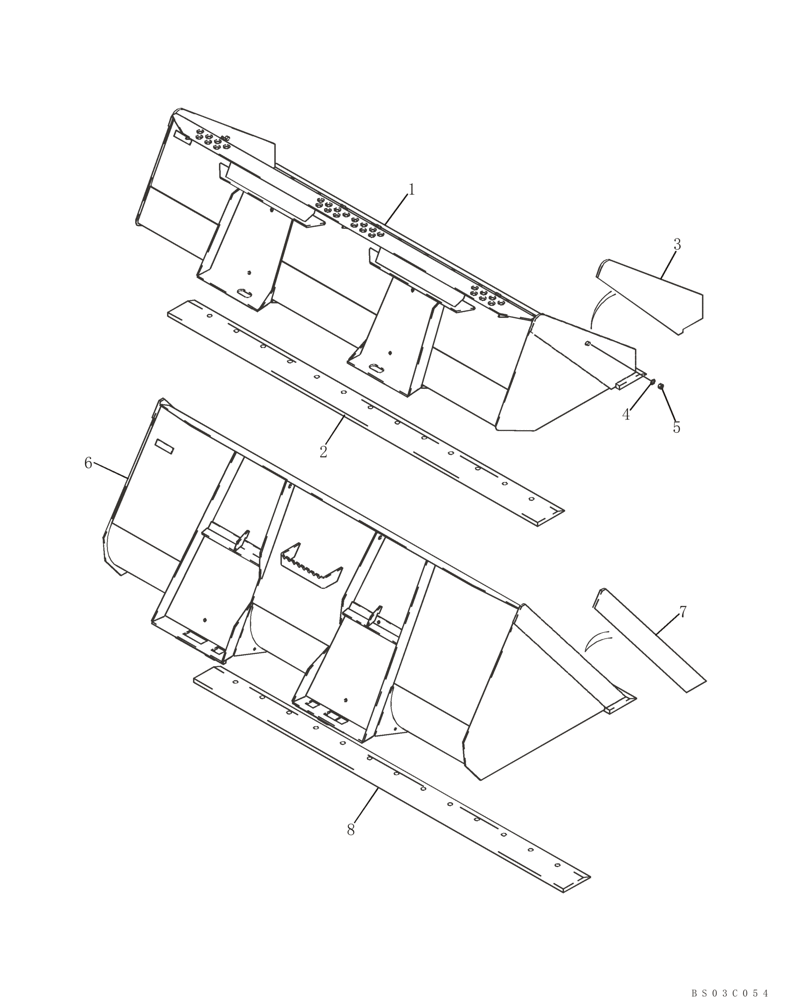

Схема запчастей Case IH 1845C - (09-17A) - BUCKETS, LOADER - 2083 MM (82 IN) WIDE BUCKET (09) - CHASSIS/ATTACHMENTS
8
6
bs03c054
1
3
7
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

192538A2

BUCKET

2083 mm (82 in); Incl. 2, 3; Machinery Item

1шт.

2

183948A2

EDGE, CUTTING

Welded On

1шт.

3

245109A2

EDGE, CUTTING

Side; Welded On

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

5

829-1412

NUT,M12, Cl 10.9

2шт.

6

190079A1

BUCKET

Bucket 2083 mm (82 in); Incl. 6, 7; Order from WholeGoods

1шт.

7

H438935

EDGE, CUTTING

Side; Welded On

2шт.

8

183948A2

EDGE, CUTTING

Welded On

1шт.
