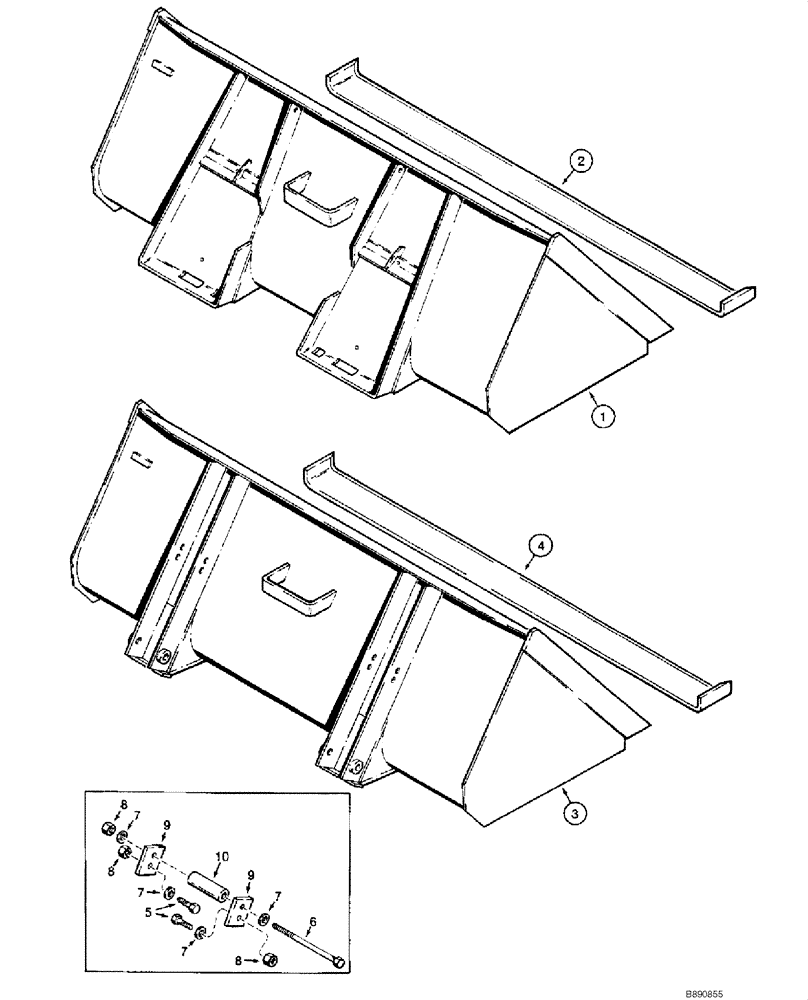

Запчасти Case IH 1845C (09-16) - BUCKET - LOADER, SPECIAL PURPOSE, JAF0041368 - (09) - CHASSIS/ATTACHMENTS

H673621

Snow and Litter Bucket, 2032 mm (80 in); Incl. 1, 2; Order from Machinery Price List; Models with Case or Hydraulic Coupler

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

D132605

EDGE, CUTTING

152 mm (6 in)

1шт.

H673622

Snow and Litter Bucket, 2032 mm (80 in); Incl. 3, 4; Order from Machinery Price List; Models with Pinned Coupler

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

D132605

EDGE, CUTTING

152 mm (6 in)

1шт.

5

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

Replaces 113-2618; Models with Pinned Coupler

4шт.

6

426-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

Models with Pinned Coupler

2шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

16.7 x 33.3 x 3.4; Replaces H426809; Models with Pinned Coupler

8шт.

8

429-1010

NUT,5/8"-11, G8

Models with Pinned Coupler

6шт.

9

H436093

PLATE

Models with Pinned Coupler

4шт.

10

H436092

PIN,25.4mm OD x 115.25mm L

Models with Pinned Coupler

2шт.
