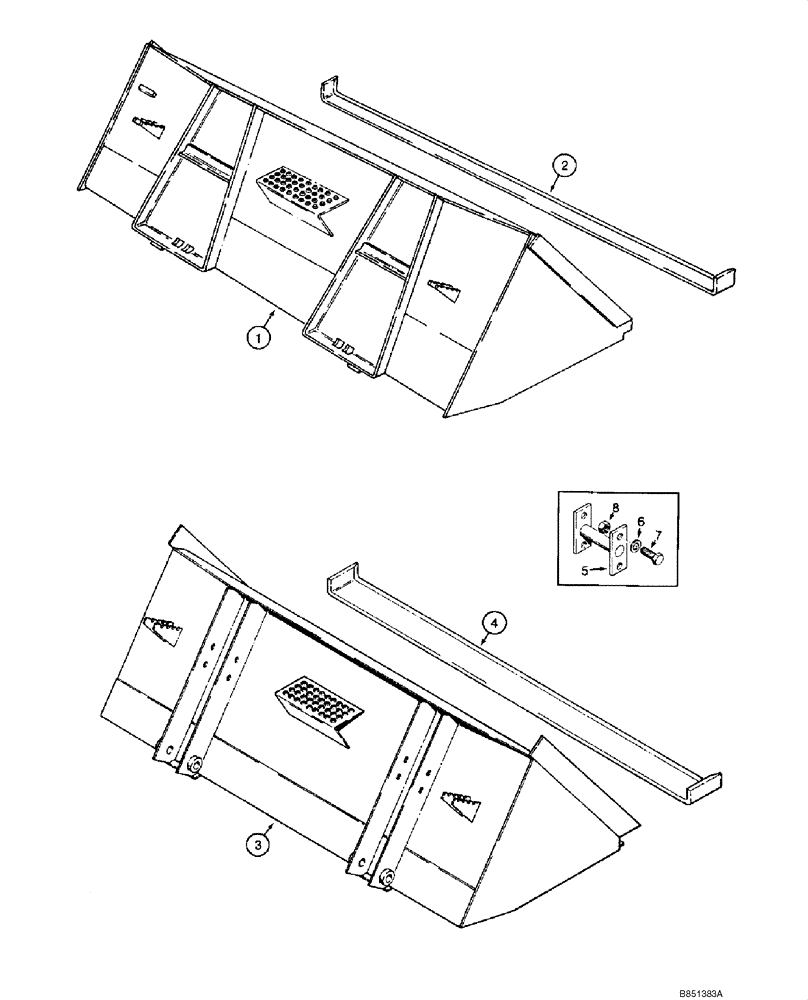

Запчасти Case IH 1845C (09-15) - BUCKETS - LOADER, SPECIAL PURPOSE, - JAF0041367 (09) - CHASSIS/ATTACHMENTS

H673050

Snow and Litter Bucket, 2032 mm (80 in); Incl. 1, 2; Order from Machinery Price List; Models with Case or Hydraulic Coupler

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

D132605

EDGE, CUTTING

152 mm (6 in)

1шт.

H673012

Snow and Litter Bucket, 2032 mm (80 in); Incl. 3, 4; Order from Machinery Price List; Models with Pinned Coupler

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

D132605

EDGE, CUTTING

152 mm (6 in)

1шт.

5

D71787

PIN

Loader Attachment Bar Mounting; Models with Pinned Coupler

2шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

16.7 x 33.3 x 3.4; Replaces H426809

8шт.

7

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

8

232-41110

NUT,5/8"-11, GC

8шт.
