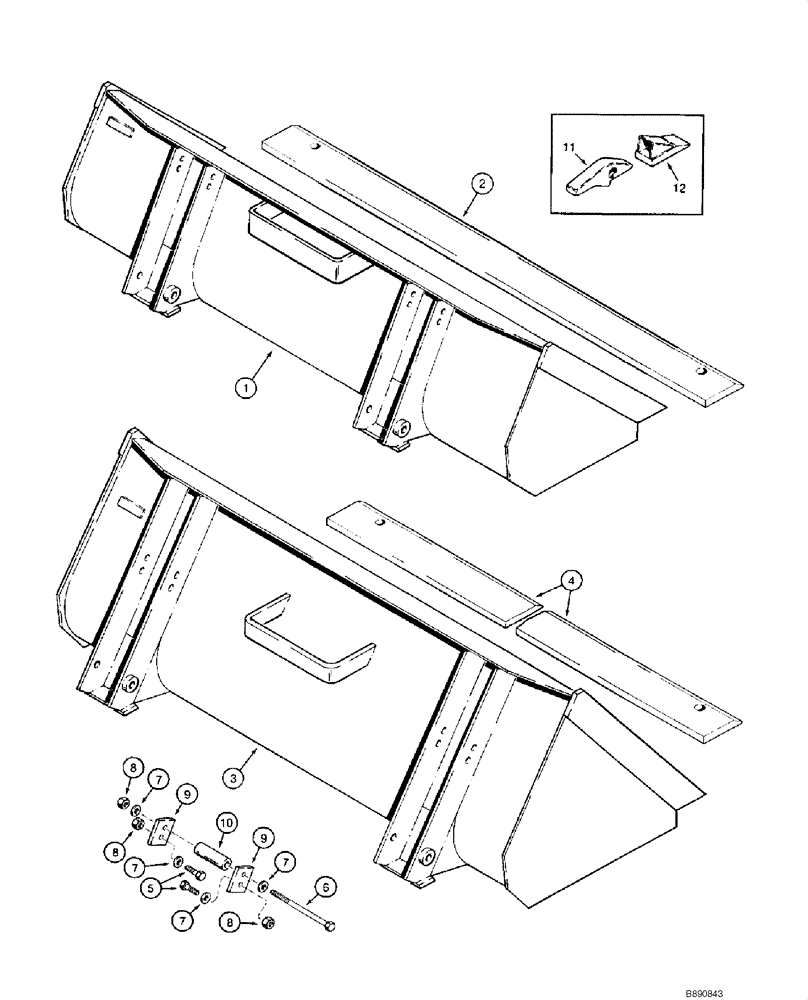

Запчасти Case IH 1845C (09-13) - BUCKETS - LOADER (PINNED COUPLER), JAF0041368 - (09) - CHASSIS/ATTACHMENTS

H673589

Dirt Bucket, 1600 mm (63 in); Incl. 1, 2; Order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

D124797

EDGE, CUTTING

152 mm (6 in)

1шт.

H673410

Dirt Bucket, 1854 mm (73 in); Incl. 1, 2; Order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

D125644

EDGE, CUTTING

152 mm (6 in)

1шт.

UTILITY BUCKET

1шт.

H673606

Utility Bucket, 1600 mm (63 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

D124797

EDGE, CUTTING

152 mm (6 in)

1шт.

H673607

Utility Bucket, 1854 mm (73 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

D125644

EDGE, CUTTING

152 mm (6 in)

1шт.

5

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

Replaces 113-2618

4шт.

6

426-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

2шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

16.7 x 33.3 x 3.4; Replaces H426809

8шт.

8

429-1010

NUT,5/8"-11, G8

6шт.

9

H436093

PLATE

4шт.

10

H436092

PIN,25.4mm OD x 115.25mm L

2шт.

T40472

TOOTH

Incl. 11, 12; No Longer Available, Order T41165, T41166

8шт.

11

T41165

TOOTH

Shank

1шт.

12

T41166

TOOTH

Point

1шт.
