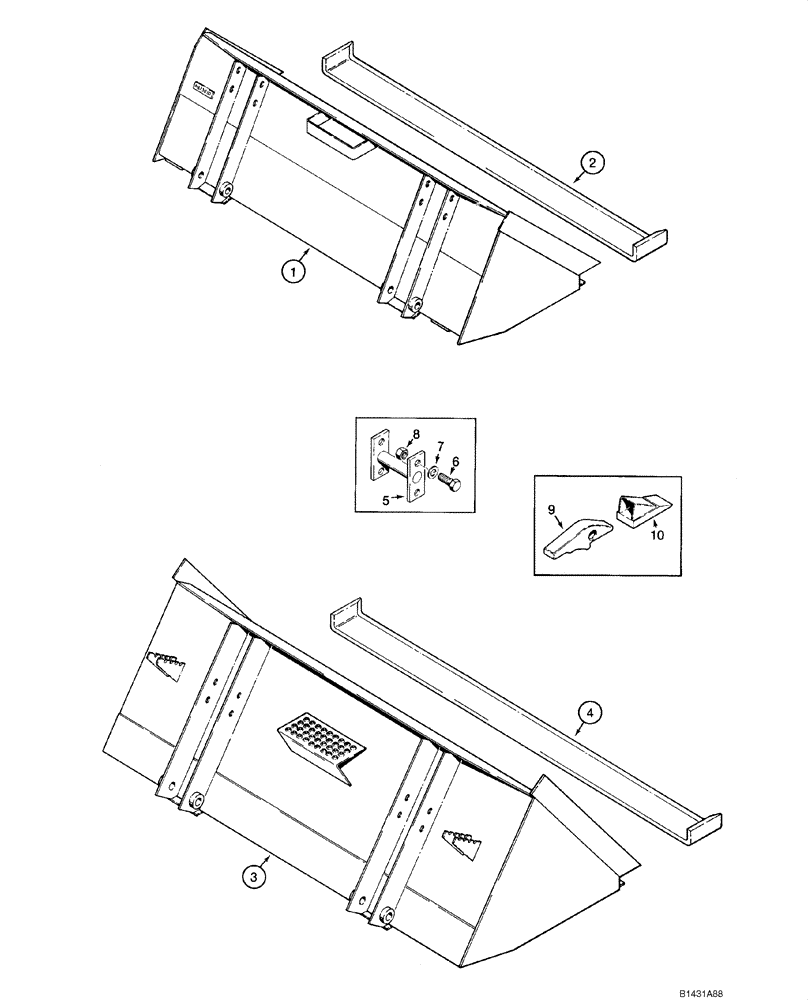

Запчасти Case IH 1845C (09-12) - BUCKETS - LOADER, - JAF0041367 (PINNED COUPLER) (09) - CHASSIS/ATTACHMENTS

H673010

Dirt Bucket, 1600 mm (63 in); Incl. 1, 2; Order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

D124797

EDGE, CUTTING

152 mm (6 in)

1шт.

H673009

Dirt Bucket, 1854 mm (73 in); Incl. 1, 2; Order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

D125644

EDGE, CUTTING

152 mm (6 in)

1шт.

H673016

Utility Bucket, 1600 mm (63 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

D124797

EDGE, CUTTING

152 mm (6 in)

1шт.

H673015

Utility Bucket, 1854 mm (73 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

D125644

EDGE, CUTTING

152 mm (6 in)

1шт.

5

D71787

PIN

Loader Attachment Bar Mounting

2шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

16.7 x 33.3 x 3.4; Replaces H426809

8шт.

8

232-41110

NUT,5/8"-11, GC

8шт.

T40472

TOOTH

Incl. 9, 10; No Longer Available, Order T41165, T41166

8шт.

9

T41165

TOOTH

Shank

1шт.

10

T41166

TOOTH

Point

1шт.
