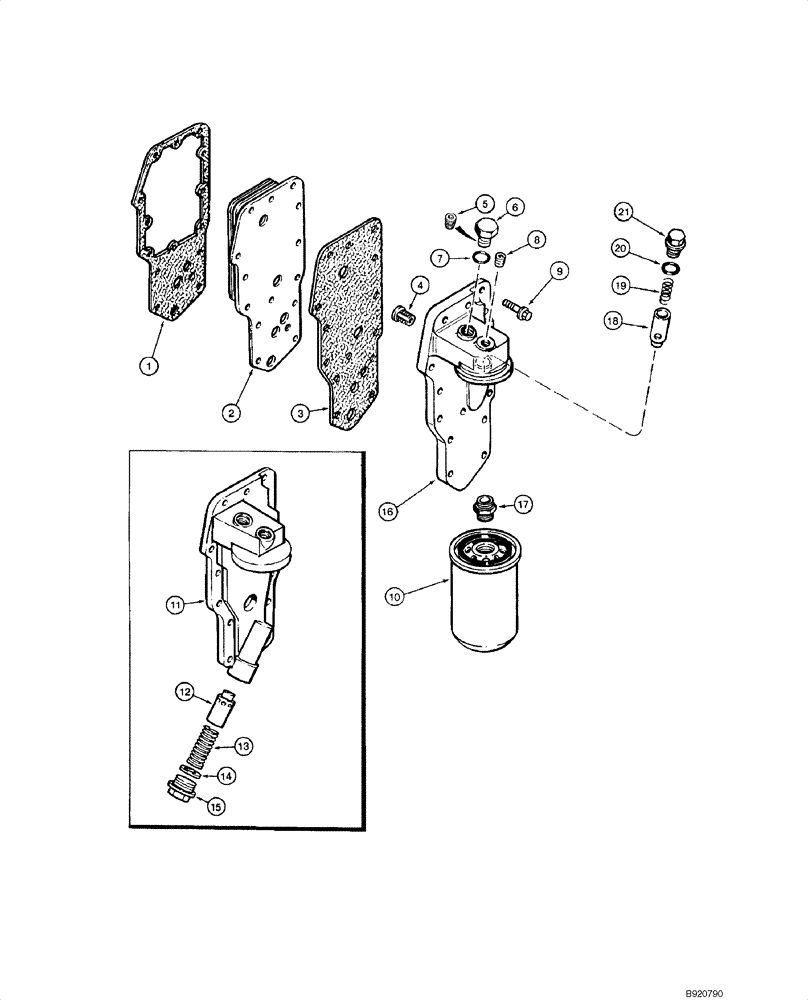

Запчасти Case IH 1845C (02-15) - FILTER AND COOLER - OIL, 4-390 ENGINE (02) - ENGINE

1

J942914

GASKET

Replaces J914387, J918256

1шт.

2

J921557

COOLER

Replaces J904320, J918292

1шт.

3

J929792

GASKET,1.2mm Thk

Replaces J912532, J918257

1шт.

4

J902338

VALVE, PRESSURE RELI

EF No Longer Available, Order J936365

1шт.

4

J936365

VALVE PRESSURE RELIE

1шт.

5

A77428

PLUG

1/4 PT; If used

1шт.

J919686

PLUG

12 mm; Incl. 6, 7; If used

1шт.

6

NSS

NOT SOLD SEPARAT

Plug

1шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

1шт.

11

J902295

HEAD ASSY.

Engine No. - 44257899; Models with Engine No. - 44257899 May be updated using Ref 16 - 21

1шт.

12

J909376

PLUNGER

1шт.

13

J918427

SPRING

Replaces J903261

1шт.

14

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

15

J924148

PLUG,M22 x 1.5

M22

1шт.

J918954

HEAD

Engine No. 44157900 - ; Incl. 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Head

1шт.

17

J909355

ADAPTER

1шт.

18

J914084

VALVE

No Longer Used, Order J918428, J918427

1шт.

18

J918428

PLUNGER

Replaces J914084

1шт.

19

J903261

SPRING

Used with J914084; No Longer Used, Order J918427

1шт.

19

J918427

SPRING

Used with J918428; Replaces J903261

1шт.

20

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

21

J915787

PLUG

1шт.
