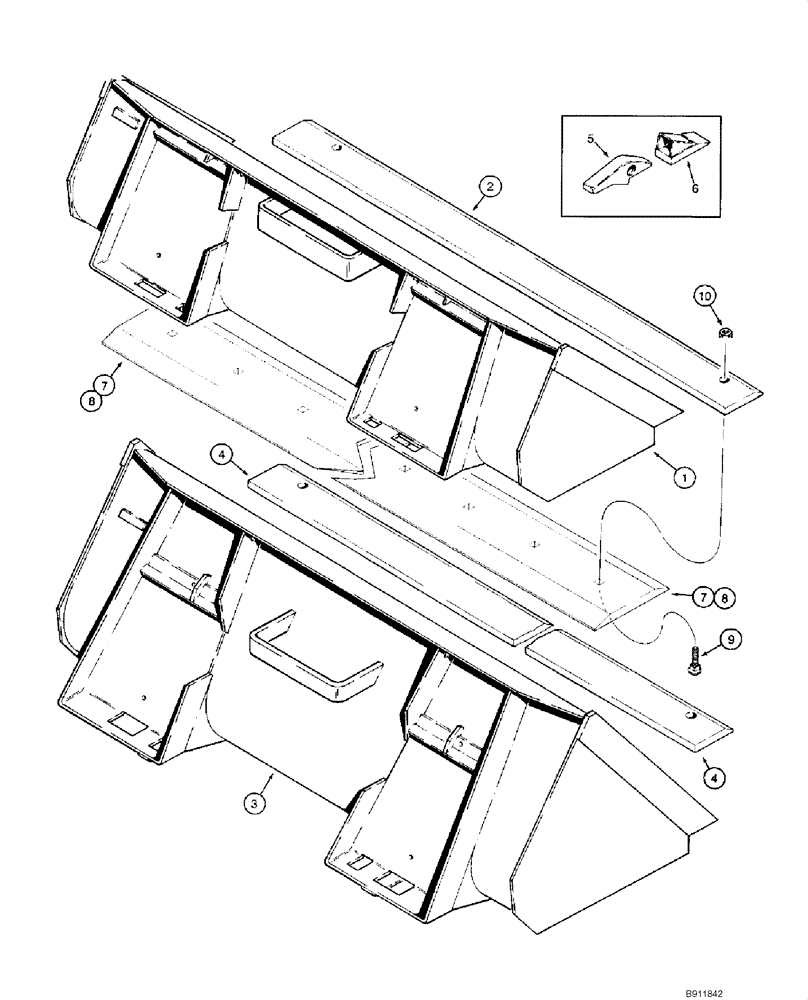

Запчасти Case IH 1845C (09-11) - BUCKETS - LOADER (CASE COUPLER, HYDRAULIC COUPLING), JAF0041368 - (09) - CHASSIS/ATTACHMENTS

H674861

BUCKET

Dirt 1600 mm (63 in); Incl. 1, 2; Order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

H438542

EDGE, CUTTING

152 mm (6 in)

1шт.

H674862

BUCKET

Dirt 1854 mm (73 in); Incl. 1, 2

1шт.

D125647

BUCKET

Dirt 1854 mm (73 in); Incl. 1, 2; No Longer Available, Order H674862

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket; Incl. 1, 2

1шт.

2

H438919

EDGE, CUTTING

152 mm (6 in)

1шт.

H674885

BUCKET

Utility 1600 mm (63 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

H438542

EDGE, CUTTING

152 mm (6 in)

1шт.

H674886

BUCKET

Utility 1854 mm (73 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

H438919

EDGE, CUTTING

152 mm (6 in)

1шт.

T40472

TOOTH

Incl. 5, 6; No Longer Available; Order T41165, T41166

8шт.

5

T41165

TOOTH

Shank

1шт.

6

T41166

TOOTH

Point

1шт.

7

H439028

EDGE, CUTTING

OAL 63", Used with H674861, H674885

1шт.

8

H439029

EDGE, CUTTING

OAL 73", Used with H674862, H674886

1шт.

9

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

9-12шт.

10

329-1010

NUT,5/8"-11, G8

9-12шт.
