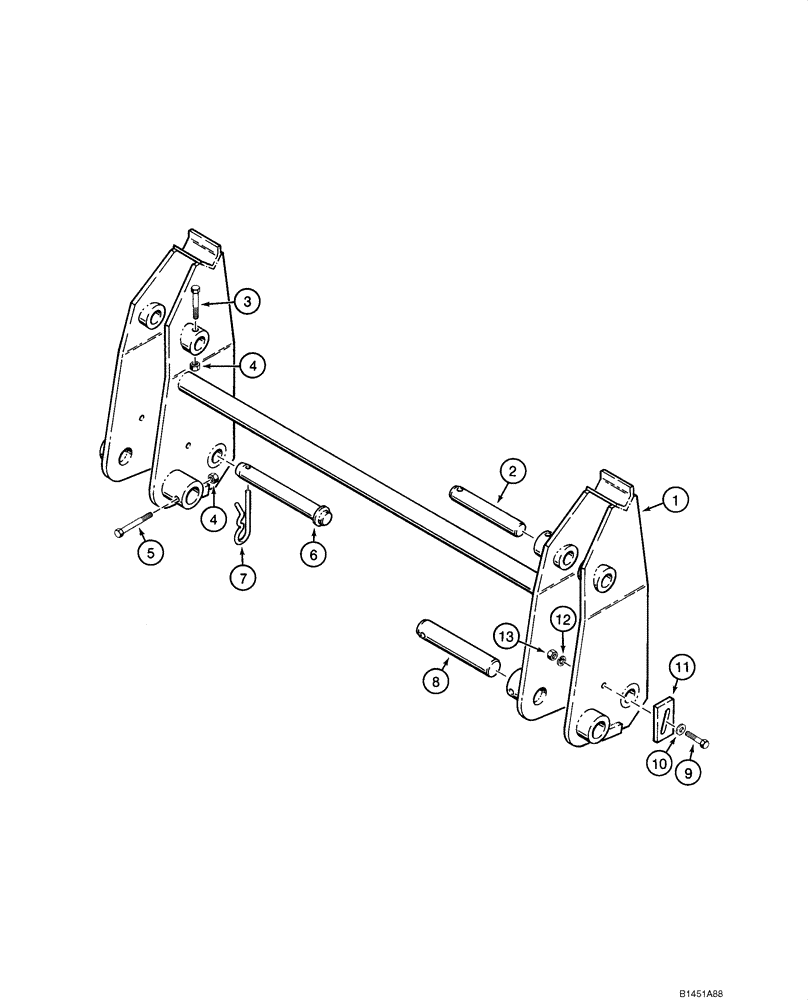

Запчасти Case IH 1845C (09-03) - COUPLER, PINNED (09) - CHASSIS/ATTACHMENTS

1

H673004

FRAME

Coupler, Hydr.

1шт.

2

D63571

PIN,25.4mm OD x 155.45mm L

2шт.

3

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

2шт.

4

232-4116

NUT,3/8"-16, GC

4шт.

5

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

6

D132172

PIN

2шт.

7

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

1/2 x 3-1/4

2шт.

8

H435299

LARGE PIN

PIN, LARGE

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

11

T40044

WEDGE

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.
