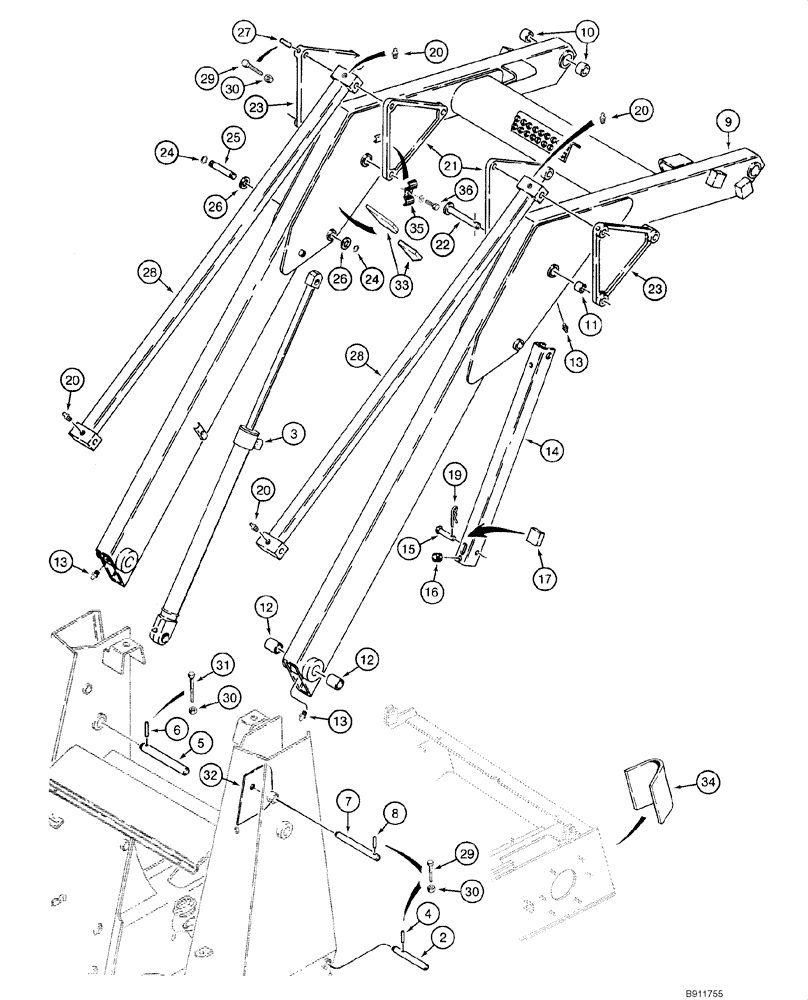

Запчасти Case IH 1845C (09-01) - LOADER LIFT - FRAME (09) - CHASSIS/ATTACHMENTS

2

D134003

PIN,25.4mm OD x 164mm L

2шт.

3

REF

INSTRUCTION

Cylinder Assy, 64 ID x 749 mm strk; Loader Lift; See Figs 08-26, 08-27; Replaces G109777

2шт.

4

138-2001

PIN,3/8" x 1 3/4", Coiled

No longer used, Order 426-636, 232-4116, Ref. 29, 30

2шт.

5

D124397

PIN,31.75mm OD x 235mm L

Pin

2шт.

6

138-2068

PIN,3/8" x 2 1/2", Coiled

No longer used, Order 232-4116, 426-648

2шт.

7

D124398

PIN,25.4mm OD x 215mm L

2шт.

8

138-2001

PIN,3/8" x 1 3/4", Coiled

No longer used, Order 426-636, 232-4116

2шт.

9

D137035

ARM ASSY.

No Longer Available, Order 296467A1

1шт.

9

296467A1

ARM ASSY.

Incl. 10 - 12; Incl. Decals, See Fig 09-45, 09-47; Also Incl. Tubes and Couplers, See Fig 08-09; Replaces D137035

1шт.

10

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

32 mm (1-1/4 in)

4шт.

11

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

25 mm (1 in)

4шт.

12

D32786

BUSHING,31.98mm ID x 41.27mm OD x 47.5mm L

1-1/4 x 3/16 x 1-7/8

4шт.

13

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

14

D124937

STRUT

1шт.

15

D79998

PIN

3/8 x 3

1шт.

16

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

17

D79692

PAD

1шт.

18

345-44

ADHESIVE

Not Illustrated; Purchase Locally

1шт.

19

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

20

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

21

D124400

PLATE

Pivot; Inner

2шт.

21a

NSS

NOT SOLD SEPARAT

Plate; LH; Inner; Not Illustrated

1шт.

22

D124919

PIN

6шт.

23

D124401

PLATE

Pivot; Outer

2шт.

24

H753244

SNAP RING,#98, Ext

Replaces 100-1698, 103-1698

4шт.

25

D124396

PIN,25.4mm OD x 118.6mm L

2шт.

26

495-81187

WASHER,1 1/16" x 1 5/8" x .065"

1/16 x 1-3/4 x 1/16; Replaces 95-81125

4шт.

27

138-2001

PIN,3/8" x 1 3/4", Coiled

No longer used, Order 426-636, 232-4116

6шт.

28

D124403

ARM

2шт.

29

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

10шт.

30

232-4116

NUT,3/8"-16, GC

12шт.

31

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

2шт.

32

D135910

LARGE PLATE

PLATE, LARGE

1шт.

H673418

GUARD ASSY.

Incl. 33 - 36

1шт.

33

H435439

GUARD ASSY.

4шт.

34

H435755

GUIDE

2шт.

35

H435737

CLAMP

1шт.

36

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.
