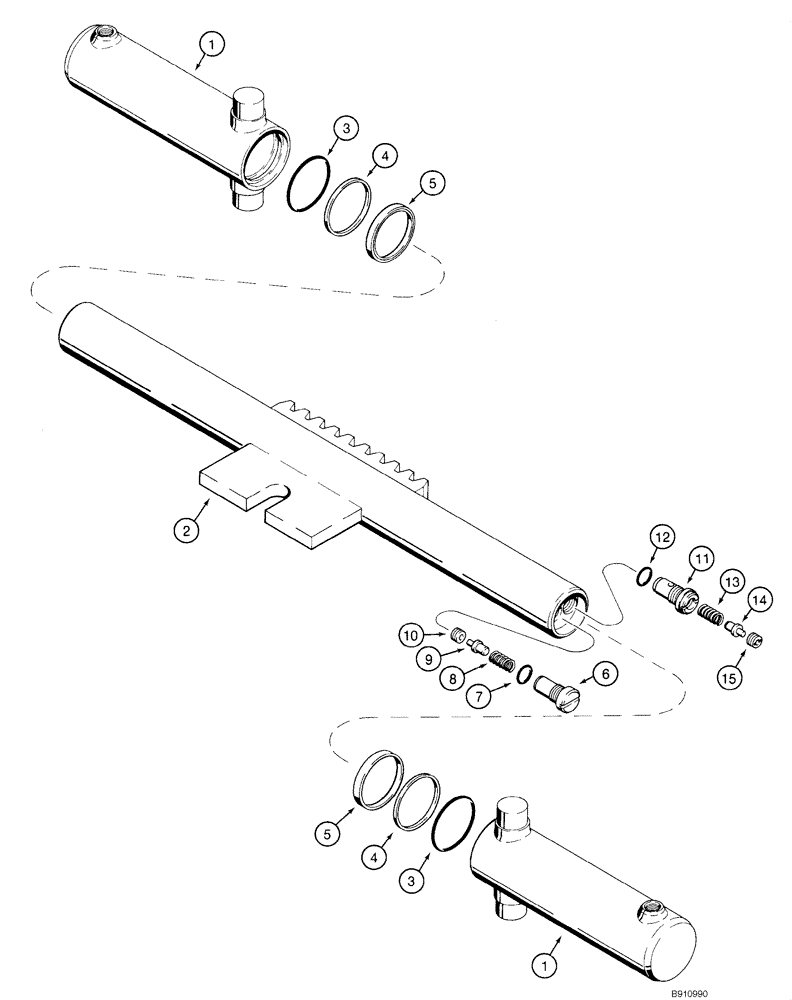

Запчасти Case IH 1845C (08-69) - CYLINDER ASSY - BACKHOE SWING (NORTH AMERICA), D125 (08) - HYDRAULICS

H673149

CYLINDER ASSY.

70 ID x 254 mm strk; Swing; Incl. 1 - 15; No Longer Available, Order 379623A1; See Figure 08-69A

1шт.

1

H439098

BARREL

2шт.

2

H439097

ROD

1шт.

3

H743591

O-RING

2шт.

4

H754606

WASHER

2шт.

5

H215202

SEAL ASSY.

2шт.

H53033

LOCK VALVE

Incl. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

8

F37883

SPRING

1шт.

9

H138362

SPOOL

1шт.

10

NSS

NOT SOLD SEPARAT

Seat

1шт.

H53025

LOCK VALVE

Incl. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

12

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

13

F37883

SPRING

1шт.

14

H138362

SPOOL

1шт.

15

NSS

NOT SOLD SEPARAT

Seat

1шт.

H53041

SEAL ASSY.

Incl. 3, 4, 5, 7, 12

1шт.
