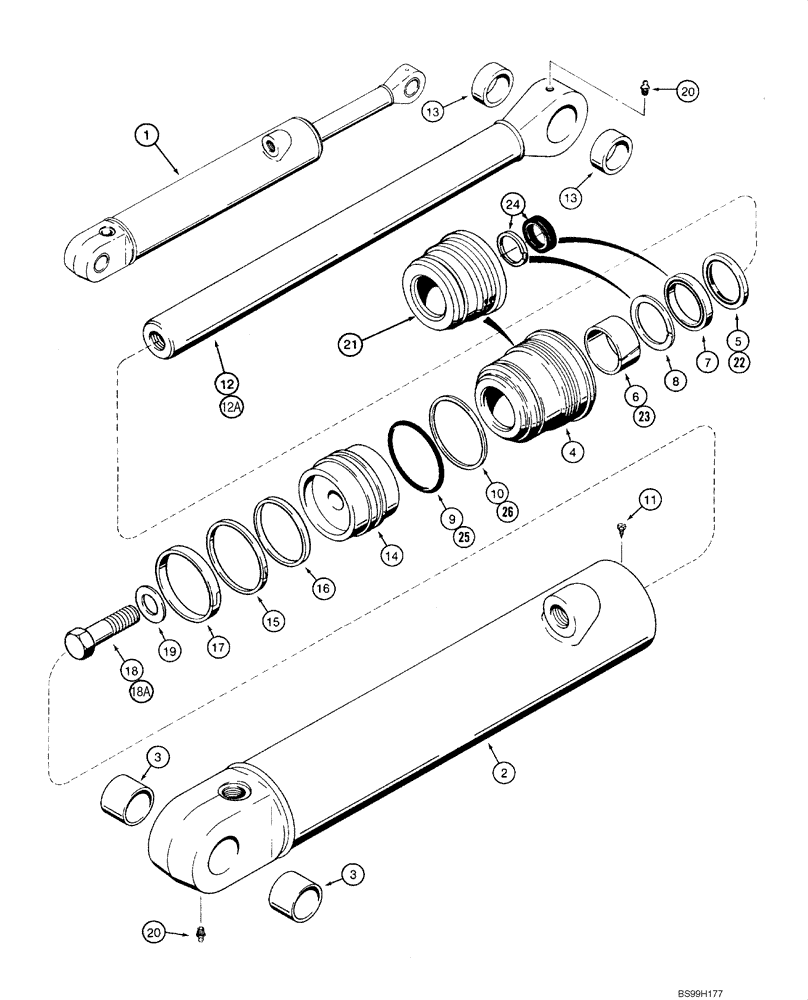

Запчасти Case IH 1845C (08-67) - CYLINDER ASSY - BACKHOE DIPPER (NORTH AMERICA), D125 (08) - HYDRAULICS

1

1346411C1

CYLINDER ASSY.

76 ID x 498 mm strk; Dipper; Incl. 2 - 20; No Longer Available, Order 1346411C2

1шт.

1

1346411C2

CYLINDER ASSY.

76 ID x 498 mm strk; Dipper; Incl. 2 - 20; No Longer Available, Order 1346411C3; See Figure 08-67A

1шт.

1346412C1

TUBE

Incl. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube

1шт.

3

R10754

BUSHING

2шт.

1346416C1

GLAND

Incl. 4 - 10; No Longer Available, Order 1346417C1, 1543256C1

1шт.

4

NSS

NOT SOLD SEPARAT

Gland, Packing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

7

G100776

SEAL

Service Option Only

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

Buffer Seal 1543256C1

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1346414C1

PISTON ROD

38 mm (1-1/2 in); No Longer Available, Order 1346414C2, 1543369C1, 25974R1, G32303

1шт.

12a

1346414C2

PISTON ROD

38 mm (1-1/2 in) dia; Incl. 12, 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

Used with 12, 12A

2шт.

14

G108518

PISTON

Used in 1346411C1

1шт.

14

1543369C1

PISTON

Used in 1346411C2

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Used in 1346411C1

1шт.

18a

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

Used in 1346411C2

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Used in 1346411C1

1шт.

19a

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

Used in 1346411C2

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

NSS

NOT SOLD SEPARAT

Gland, Packing; Incl. 21 - 26

1шт.

21

1346417C1

GLAND

1шт.

22

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

23

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

24

NSS

NOT SOLD SEPARAT

Seal; Piston Rod

1шт.

25

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

26

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 15 - 17, 22 - 26

1шт.
