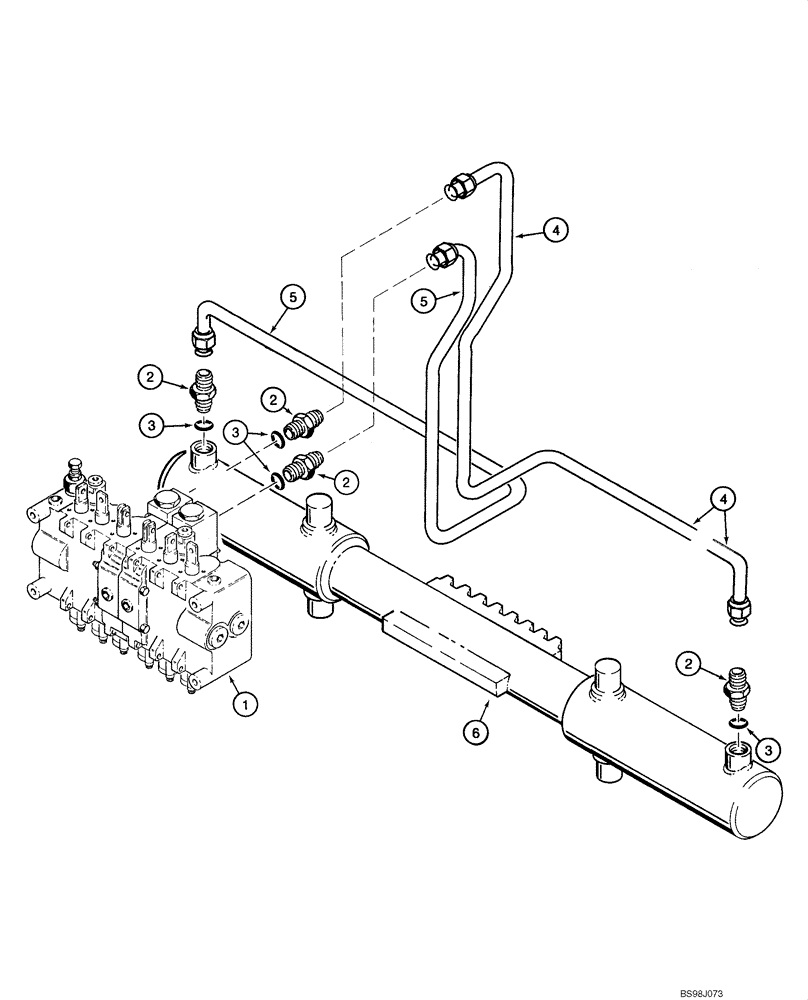

Запчасти Case IH 1845C (08-60) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (NORTH AMERICA), D125 (08) - HYDRAULICS

WITH TUBES AT CONTROL VALVE

1шт.

1

H674500

VALVE

Backhoe; See Fig 08-61 - 08-63

1шт.

1

87400034

VALVE

Backhoe; Replaces H764500; See Fig 08-61 - 08-63

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

256126A1

TUBE,590, 493 mm Length

RH

1шт.

5

256128A1

TUBE,480, 413 mm Length

LH

1шт.

6

H673149

CYLINDER ASSY.

70 ID x 254 mm strk; Swing; See Fig 08-69; No Longer Available, Order 379623A1

1шт.

6

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

70 ID x 254 mm strk; See Fig 08-62A

1шт.
